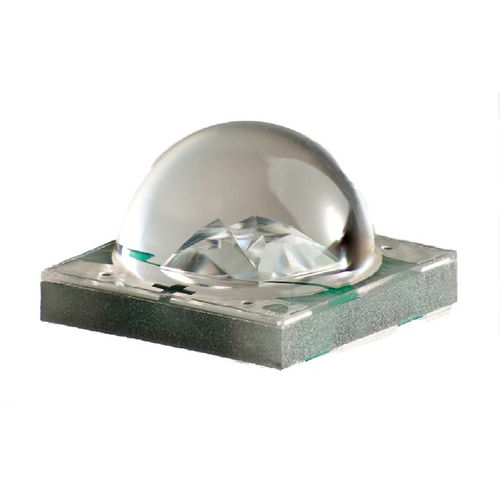

White LED XT-E

blueroundcompact

Optimized for directional, high-lumen applications, from indoor and outdoor to portable and lamp retrofits, the XLamp® XT-E LED delivers high performance and high reliability in the industry-standard XP/XT footprint. The XT-E LED offers the benefits of the XT/XP platform - compact and proven 3.45 mm x 3.45 mm package and established ecosystem - enabling lighting manufacturers to simplify the design process and shorten time to market. The XT-E LED is available in royal blue and white. The XT-E White LED offers a high-efficacy option. In this document, the term White denotes the white XT-E LED without regard to its efficacy. The terms Standard and High Efficacy are used when necessary to differentiate the performace of the High Efficacy XT-E LED from the XT-E LED without the high-efficacy option. FEATURES • - Maximum Vf for High Efficacy XT-E White: 2.85 V • - Available in 70-, 80- and 90-CRI minimum white • - Binned at 85 °C • - Available in 2200 K CCT • - Thermal resistance: White 2.8 °C/W, Royal Blue 2.0 °C/W • - Wide viewing angle: White 115°, Royal Blue 130° • - Maximum drive current: White 1.5 A, Royal Blue 1.5 A • - Electrically neutral thermal path • - Vf binning supported for XT-E White and Royal Blue • - XT-E Royal Blue sorted into 2.5-nm-wavelength bins • - Unlimited floor life at < 30 °C/85% RH • - Reflow solderable - JEDEC J-STD-020C compatible • - RoHS and REACH compliant • - UL® recognized component (E349212)
