Water pump MVHS
manualcentrifugalstationary

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
manual
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
work, for control, cleaning, washing
Material
stainless steel, steel
Voltage
380 V, 230 V
Protection level
fail-safe, IP55
Other characteristics
standard, automatic, flow, radial, micro, vertical
Flow

Max.: 1,200 m³/h
(42,377.60007 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Pressure

Max.: 1,200 bar
(17,404.529 psi)

Min.: 0 bar
(0 psi)

Head

Max.: 320 m
(1049'10" )

Min.: 0 m
(0'00" )

Power

Max.: 110 kW
(149.56 hp)

Min.: 0.37 kW
(0.5 hp)

Fluid temperature

Max.: 120 °C
(248 °F)

Min.: -10 °C
(14 °F)

Description

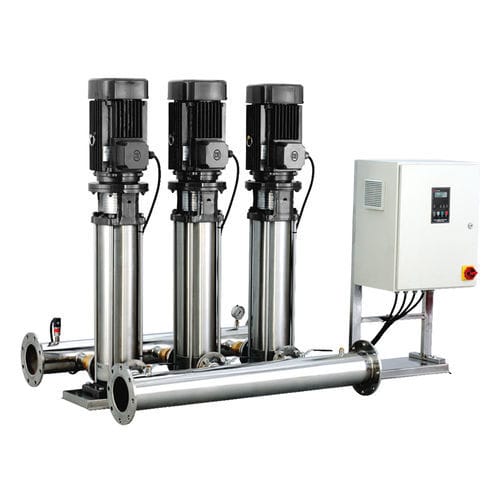

C.R.I MVHS pumps are vertical multistage centrifugal type supplied with radial flow impeller for higher pressure application. The inline construction simplifies the piping work and major saving on floor space compare to other type of pumps. Most of the wetted parts in the pumps are made up of corrosive resistant stainless steel material for durability. Inline pumps are powered by totally enclosed fan cooled single phase or three phase motors. All single phase motors are thermally protected. Three phase pumps are supplied with either standard or premium efficiency motors. The control system is made with PLC / Micro controller / VFD for constant pressure, energy saving and fail-safe automatic operation. These systems are supplied as complete package including manifold, pressure vessel, check/gate valves, pressure gauge/ transducer, control panel with VFD/PLC/Micro controller etc. Features Sophisticated water pressure throughout the building round the clock and ensures efficient & constant water pressure management No manual interference to operate the pumping system Low noise and vibration level Reliable automation Stainless steel impeller and casings Thermally protected single phase motors Different materials of construction Application Pressure boosting system for multifamily residences, hotels, offices, healthcare hospitals, villas, theatres, auditorium, industries etc. Industrial washing and cleaning system

Catalogs

No catalogs are available for this product.

See all of C.R.I. Pumps‘s catalogs

Other C.R.I. Pumps products

PRESSURE BOOSTING SYSTEM
