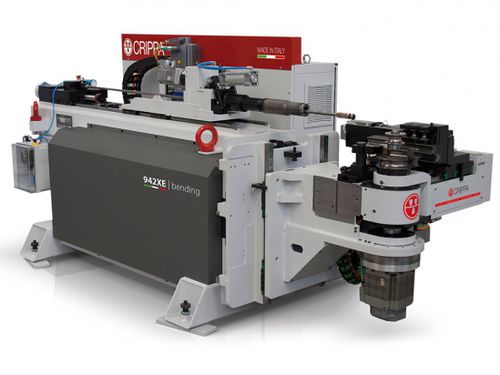

Electric bending machine 942XE series

tubeCNC9-axis

The 942XE series of CNC tube benders offer multiple, fully automatic bending cycles. The small size of the bending head allows the creation of close shapes, in a single cycle, even for tubes that normally require two-way bending. This provides significant gains in productivity and accuracy. The bending head allows the simultaneous use of multiple types of tooling including different radii, compound clamps, and variable radius dies. The head is also designed to be manually transformable for either clockwise or counterclockwise bending and the machines are prearranged to be integrated inside working cells. All nine axes are driven by electric motors with digital Full Electric technology and controlled by the Siemens 840 Dsl CNC. This provides high quality, energy conservation, and low (to zero) waste setup. The high production speed, the ability to integrate special devices, and the possibility of creating bends with a radius of less than 0.8 D or push with variable radius bends mean that these machines are mainly used by those working in the automotive, aerospace, air conditioning, and furniture industries. The operator programs the machine through an intuitive interface on color LCD screen 15. The three-dimensional graphics software, UII "User ISO Interface", facilitates the programming, simulation, and optimization of the bending cycle.
