Hydraulic cylinder DCR series, DR series

double-actingtie-rod

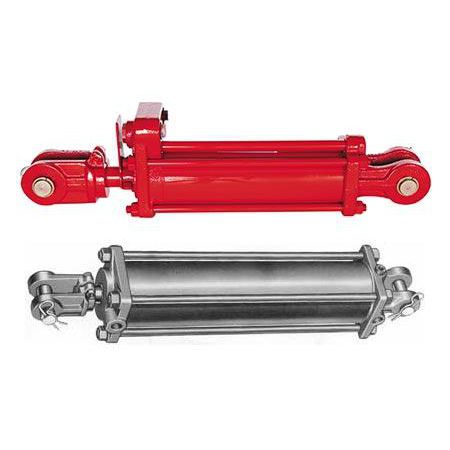

DCR and DR cylinders incorporate an internal bypass for synchronizing rephasing cylinders in a series circuit. The DCR also features hydraulic depth control with adjustment from 0 to 8" stroke for use as a master cylinder. All cylinders are plumbed in series as shown in the sample system. Bores and rod diameters are volumetrically matched so that all cylinders rods move equally when stroked. At the end of each stroke, the system is resynchronzed through the internal bypass in each cylinder. FEATURES: 2500 psi working pressure (4000 psi max shock) Precision skived and burnished barrel for long seal life Hardened chrome plated rods resist damage and rust Double lipped polyurethane rod seal for less leakage Clevis mounting Top porting on DCR Ports in line with pins on DR
