AC solid state relay GN+
DCsingle-phaseDIN rail

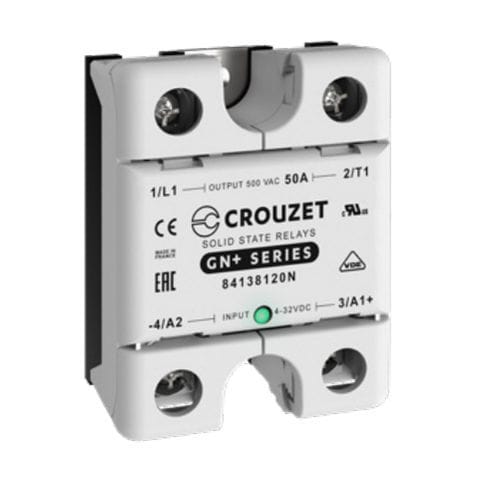

AC solid state relay - GN+ - Crouzet - DC / single-phase / DIN rail
AC solid state relay - GN+ - Crouzet - DC / single-phase / DIN rail
Add to favorites
Compare this product


Characteristics

Control voltage
AC, DC
Network
single-phase
Mounting
DIN rail, panel-mount, PCB
Output voltage

Min.: 12 V

Max.: 500 V

Output current

25 A, 50 A, 90 A, 125 A

Description

SSR, GN+, Single Phase, Panel Mount,125A, IN 20-260VAC/DC, OUT 500VAC,Zero Cross | 84138183N Automation & Control > Solid State Relays (SSR) > AC Single Phase Single Channel > Panel Mount > GN+ Crouzet Solid State Relay GNP125UZM, GN+ Series, Single Phase, Panel Mount, 125A, Input Voltage 20-260 V AC/DC, Output Voltage 500 VAC, Zero Cross, Output Protection VDR, IP20 SSR, GN+, Single Phase, Panel Mount, 125A, IN 4-32 VDC, OUT 500 VAC, Zero Cross | 84138180N Automation & Control > Solid State Relays (SSR) > AC Single Phase Single Channel > Panel Mount > GN+ Crouzet Solid State Relay GNP125DZM, GN+ Series, Single Phase, Panel Mount, 125A, Input Voltage 4-32 VDC, Output Voltage 500 VAC, Zero Cross, Input Protection, Output Protection VDR, IP20 SSR, GN+, Single Phase, Panel Mount, 90A, IN 20-260VAC/DC, OUT 500VAC,Zero Cross | 84138153N Automation & Control > Solid State Relays (SSR) > AC Single Phase Single Channel > Panel Mount > GN+ Crouzet Solid State Relay GNP75UZM, GN+ Series, Single Phase, Panel Mount, 90A, Input Voltage 20-260 V AC/DC, Output Voltage 500 VAC, Zero Cross, Output Protection VDR, IP20 SSR, GN+, Single Phase, Panel Mount, 90A, IN 4-32 VDC, OUT 500 VAC, Zero Cross | 84138150N Automation & Control > Solid State Relays (SSR) > AC Single Phase Single Channel > Panel Mount > GN+ Crouzet Solid State Relay GNP75DZM, GN+ Series, Single Phase, Panel Mount, 90A, Input Voltage 4-32 VDC, Output Voltage 500 VAC, Zero Cross, Input Protection, Output Protection VDR, IP20 SSR, GN+, Single Phase, Panel Mount, 90A, IN 4-32 VDC, OUT 500 VAC, Zero Cross | 84138150N Automation & Control > Solid State Relays (SSR) > AC Single Phase Single Channel > Panel Mount > GN+
