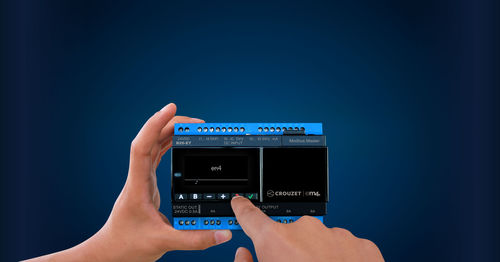

Nano PLC em4 NANO-PLC

analog inputsrelay outputsRS485

26 I/OS: 16 INPUTS & 10 OUTPUTS The CPU with 26 Digital and Analog I/Os can handle tons of small-scale applications and you can easily expand it for your medium-size projects, upgrading your product capabilities thanks to the Digital and Analog expansions that allows you to connect more sensors and other high-end inputs and outputs. Add up to 2 expansions to the CPU to get up to 46 I/OS. CONFIGURABLE ANALOG INPUTS The first Nano-PLC with up to 12 analog inputs that allows you to directly connect high-end industrial sensors and other signal as: • 4-20mA: for high-end industrial sensors for water treatment • LDR: direct connection of LDR light sensors (No converter required) • NTC: direct connection of NTC temperature probe (No converter required) • 0 to 10V: to control with direct voltage or potentiometers • VCC or Voltmeter: to monitor battery status or other power sources DIGITAL INPUTS AND CONFIGURABLE HIGH-SPEED INPUTS 4 of the 16 digital inputs can handle high-speed counting of up to 60 KHz allowing you to connect • Rotary Encoders: for motor position control like in access control barriers, packaging machines • Counters and meters: for high-speed counting, water and gas flow metering, etc • Industrial Tachometer: to calculate the speed of industrial motors DIGITAL OUTPUTS Control up to 10 different devices with the following output types: • 2 Relay Outputs of 6 Amps • 6 Relay Outputs of 8 Amps • 2 Static/SSR PWM Outputs for: ○ Analog actuators like valves and pumps control ○ Analog actuators via external converters from PWM to 0-10V or 4-20mA ○ Motor speed control with AC and DC drives
