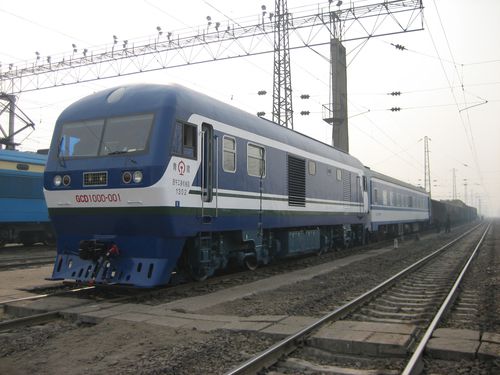

Electric locomotive GCD-1000freightpassenger
Add to favorites
Compare this product
Characteristics
- Power source
- electric
- Options
- freight, passenger
- Power
1,000 kW
(1,360 hp)
Description
SPECIFICATION
Type GCD1000
Description Heavy-duty rail vehicle
Driving mode AC-DC
Shaft type B0-B0
Wheel diameter (mm) 1050
Gauge (mm) 1435
Wheel base (mm) 2800
Mass weight (t) 92
Minimum radius of curvature negotiable (m) 125
Breaking form Air breaking + parking breaking
Outline dimension (mm) 16500×3106×4150
Maximum speed (km/h) 100
Continuous speed (km/h) 12
Starting traction force (kN) 334
Continuous traction force (kN) 210
