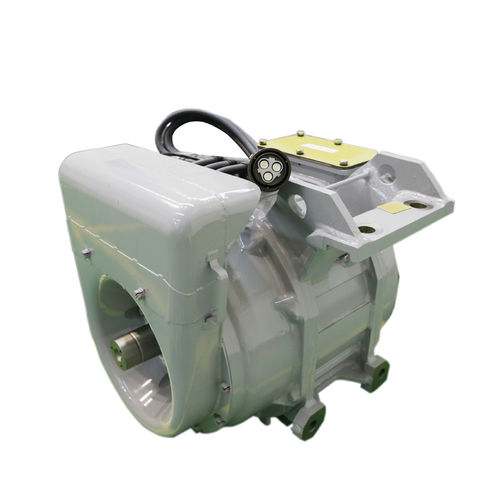

AC motor YQ-365three-phaseasynchronousfor railway applications
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC, three-phase
- Type
- asynchronous
- Applications
- for railway applications, traction
- Rotational speed
4,142 rpm
(26,024.95 rad.min-1)
Description
EMU Type YQ-365 Asynchronous Traction generator
Usage: Type CRH2 EMU with speed of 300KM/h and above
Main technical features
Insulation grade: 200（stator）；
Type: Three-phase squirrel-cage induction traction generator
Cooling method: forced draught cooling method;
Power transmission mode: Parallel universal gear type flexible coupling mode;
Number of poles: 4 poles;
Load mode: Bogie frame suspension installation
Number of phases: 3-phase;
Power：365KW；
Catalogs
Traction Motor for EMUs
12 Pages
