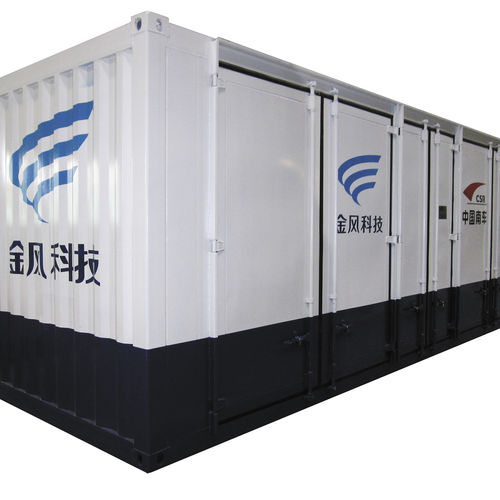

LV transformer station

HVexterior

Basic Parameter HV windingLV winding " Rated capacity（kVA）"500-2500500-2500 " Rated working voltage（kV）"10～350.69 " Short-circuit impedance（%）"7 " Frequency（Hz)"50 " Cooling mode"AN/AF " Insulation Class"A/F/H Feature 1.Heat and cold proof: As all the electric equipments of integrated intelligent transformer substation are in the container, it will not be affected by the severe operation conditions like rats and insects, salt fog, dust, rain, sunshine, wind snow, hail and etc. 2.Green and clean: As all the electric equipments are installed in the container, and all the construction work are conducted indoor. Noises and electromagnetic radiation are shielded in the metallic layers, and frame structure is metallic elements. Service life is longer than brick-concrete and cement structure, and all the components and parts are recyclable. 3.Remote control: It can automatically complete the basic information like information collection, measuring, control, protection, metering and inspection. It has higher functions like supporting grid to conduct automatic control in real-time, intelligent adjustment, on-line analysis and determination, as well as collaboration. 4.Short-term construction duration: In terms of container type transformer substation, our company will preliminarily combine transformer with high-low voltage switch cubicle, intelligent monitoring protection system, and install them into container and do the commissioning. During construction of transformer substation, connect the outlet lines, which will shorten the time compared with electric room building. " " Operation Experience "3 years
