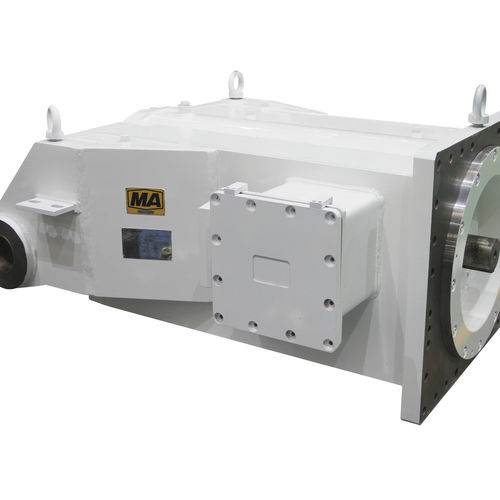

3-phase motor

asynchronous> 1000 VIP55

Basic Parameter Rated power 200kWExplosion-proof level Exd I Mb Rated efficiency94.9%Insulation classH级 Rated voltage1140VdutyS1　 Rated current128Anoise≤85 dB Rated torque1930NmPeak torque5790Nm Rated rpm990r/minCooling methodWater cooling Rated frequency 50HzSurroundings temperature0～40℃　 Frequency range0～100HzIPIP55 weight3147kgvolume1639*1340*780mm Feature Advantage High reliability It inherits railway traction motor design technology by adopting such highly reliable structure design as high-strength frame, shaped stator coil, anti-corona rotating shaft material, imported bearing, high-strength rotor copper alloy conducting bar and end ring. Motor insulation structure is able to bear high frequency pulse under inverter power supply; stator adopts VPI; The motor insulation system design is strengthened in terms of stator water-proof capability through strict water immersion test to meet operation requirements in high temperature under the mine. Temperature sensor is buried in each phase winding and bearing in the stator to monitor temperature of all critical components of the motor at real time and ensure reliable operation of the motor. Start under stable heavy-loading Under low frequency operation, it can output 1.3-3 times rated torque, apt to start under heavy loading so as to ensure restarting at any time in the tunneling process. High economic benefitLow maintenance cost and increased roadheader presence based on high reliability; reduced fuel costs owing to high efficiency; enhanced operation efficiency with starting torque 3 times of rated torque.
