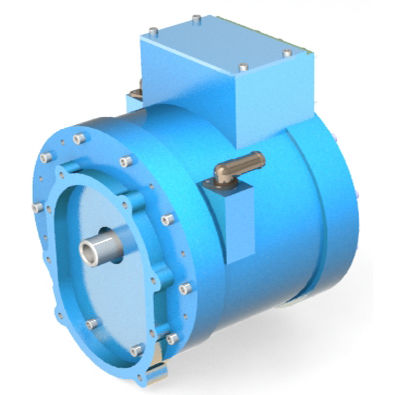

AC motor YPS-35

synchronousIP21permanent magnet

Basic Parameter Rated power35kWPeak power85kW Rated torque120N.mPeak torque290N.m Rated rpm2800r/minPeak rpm9000r/min Rated voltage 170VRated current175A Rated efficiency95%noise75dB Insulation classHIPIP67　 weight60kgCooling methodWater cooling　 Basic parameter for converter Rated power　45kWPeak power 100kW　 Input voltage range280～380VDC　Raged input voltage336V　 Output frequency range0～1300HzCooling methodWater cooling　　 IPIP21　Rated efficiency97%　 featureAdvantage high efficiencyThe motor enjoys rated efficiency of 95% and wide constant power range with over 80% efficiency area accounting for 94.5% of the total efficiency area. High reliabilityBy adopting new rare earth material and reasonable design, it effectively overcomes the irreversible demagnetization of permanent magnet so as to ensure safe and reliable operation under various working conditions. high power densityPermanent magnet synchronous motor is able to provide more power output and acceleration speed for new energy vehicle compared with other motors with the same mass and volume. low maintenance costThe full-enclosure structure creates clean and unpolluted environment within the motor and reduces the maintenance cost in its life-cycle operation process.
