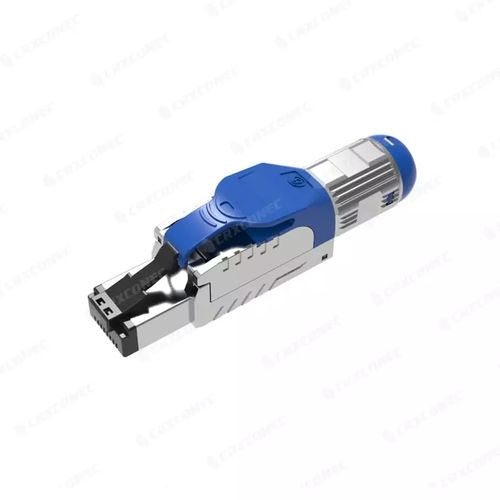

Data connector CC-01-90001

RJ45straightshielded

The NEW cat 8 RJ45 Field Termination Plug for telecom application brings you a new prospect of a high transmission speed of 40G. Our cat.8 toolless RJ45 connector with optional design, the straight one or 5 angled directions for choosing which can help the deployment of different environments, such as datacenter, IP cameras, automatic building control system, and Wi-Fi access points. Cat.8 channel is characterized to 2 GHz and specified for 30 meters, 2 connector channels which are intended as a data center application. The Cat8 Cabling Solution is tested based on the standard of ANSI/TIA-568.2-D and also is independently certified by reputed laboratories GHMT in Germany. Field Termination RJ45 Plug Fast and dependable installation. Meet PoE plus (IEEE802.3at) requirement. Fit with cable outer diameter from 6.0 to 8.5mm. Apply for 22AWG to 26AWG cable. Dust cover protection under IP20 level. GHMT Verified Cat.8 Copper System Certification CRXCONEC Cat.8 channel link are independently certified by reputed laboratories GHMT in Germany, based on 2 Connector channel under 30M and follow the standard of Class I ISO/IEC TR 11801-9901 Ed.1.0 (2014-08).
