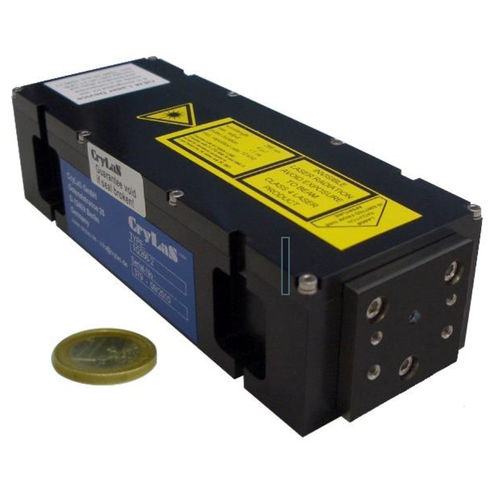

Nanosecond laser FTSS355-Q3Q-switchedshort-pulsesolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, nanosecond, short-pulse
- Technology
- solid-state
- Spectrum
- UV, monochromatic
- Applications
- engraving, industrial, marking, for medical applications, for spectroscopy, for research, for photolithography, measurement, for workstations, for micro-machining, for microscopes, for mass spectrometry, R&D, for Raman spectroscopy, laboratory, for semiconductors, for the glass industry
- Other characteristics
- conduction-cooled, OEM, precision, single longitudinal mode, sealed, single, high-performance, adjustable, low-noise, for integration, stabilized, DPSS, diode-pumped, Nd:YAG, LD-pumped, air-cooled, single-mode
- Power
Max.: 0.015 W
Min.: 0 W
0.015 W
- Wavelength
Max.: 355 nm
Min.: 355 nm
355 nm
Description
FTSS355-Q3 - 355 nm laser with 15 µJ, max. 2.5 kHz
The CryLaS Q-series lasers are diode-pumped solid-state lasers (DPSS lasers) based on a microchip design. It consists of a Nd:YAG resonator with a directly coupled saturable absorber that works as a passive Q-switch. The compact housing and simple operation make the lasers an ideal light source for applications that require minimal housing dimensions with maximum performance. Based on the 1064 nm fundamental, non-linear optics (NLO optics) generate frequency multiples of this fundamental, covering a broad spectrum of laser wavelengths from 1064 nm to 213 nm.
The FTSS355-Q3 laser emits pulses with a pulse width of approx. 1 ns at 355 nm and can be modulated from single shot to 2.5 kHz. The pulse energy is 15 µJ @ 1 kHz.
CryLaS lasers impress with their simple installation, service-free operation and long service life.
