Nanosecond laser eMOPA532-200

Q-switchedshort-pulsesolid-state

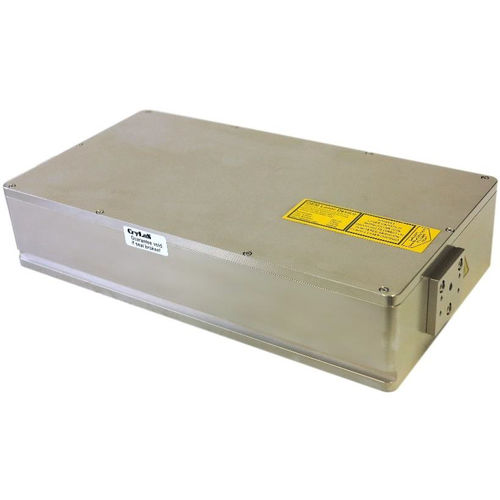

eMOPA532-200 - 200 mW green pulsed laser at 532 nm The eMOPA product series is based on a diode-pumped, passively Q-switched solid-state laser as the master oscillator and a downstream diode-pumped power amplifier with a patented optical design. Wavelengths from the DUV to the green spectral range can be generated for this series: 213 nm, 266 nm, 355 nm and 532 nm. The eMOPA532-200 emits pulses with a pulse width of around 1 ns and 200 µJ pulse energy. The average output power is 200 mW in transverse single-mode operation at a wavelength of 532 nm and peak pulse powers of >130 kW. The repetition rate can be adjusted from single shot to a maximum of 1 kHz by external triggering or the supplied software. The eMOPA is ideal for 24/7 industrial use and is primarily used in ophthalmology. By adapting the lasers to the requirements of our customers, a wide range of applications is possible, such as photoacoustics and ophthalmological markings.
