Nanosecond laser FQSS213-Q2Q-switchedshort-pulsesolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, nanosecond, short-pulse
- Technology
- solid-state
- Spectrum
- UV, monochromatic
- Applications
- for medical applications, industrial, marking, for semiconductors, for mass spectrometry, for spectroscopy, for the glass industry, engraving, for research, R&D, for microscopes, for photolithography, for Raman spectroscopy, measurement, laboratory, for micro-machining, for workstations
- Other characteristics
- OEM, compact, single longitudinal mode, DPSS, precision, single-mode, sealed, diode-pumped, Nd:YAG, single, high-performance, adjustable, low-noise, stabilized, for integration, air-cooled, LD-pumped, conduction-cooled
- Power
100 W
- Wavelength
213 nm
Description

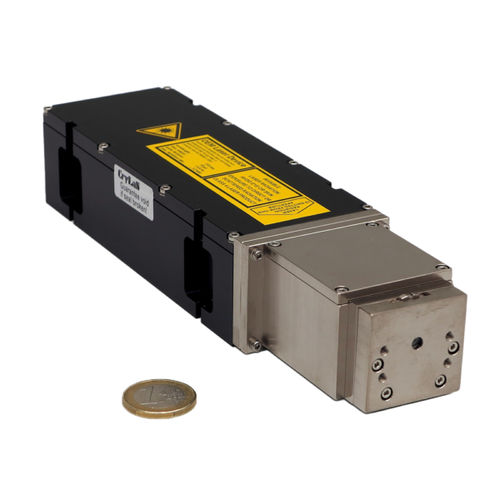

FQSS213-Q2 - 213 nm laser with 0.1 µJ at 10 kHz
The CryLaS Q series lasers are diode-pumped solid-state lasers (DPSS lasers) based on a microchip design. This consists of an Nd:YAG resonator with a directly coupled saturable absorber which works as a passive Q-switch. The compact housing and easy operation make the lasers an optimum light source for applications that require minimal housing dimensions with highest performance. Based on the 1064 nm fundamental, harmonics are generated using non-linear (NLO) crystals that allow a wide spectrum of laser wavelengths from 1064 nm to 213 nm.
The FQSS213-Q2 laser emits pulses with approximately 1 ns pulse width at 213 nm, and can be modulated from single shot to 10 kHz. The pulse energy is 0.1 µJ.
CryLaS lasers impress with their easy installation, service-free operation and long service life. This makes them ideal for OEM applications and demanding laboratory setups.
