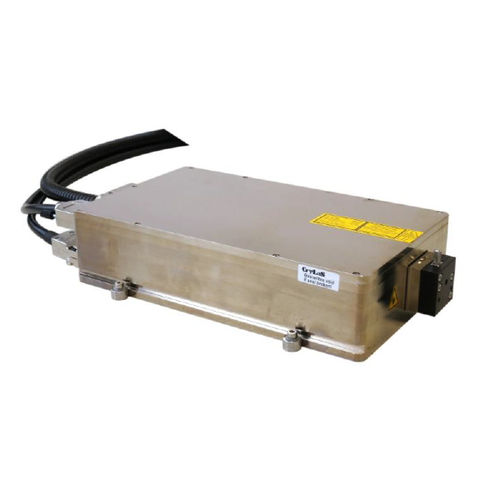

Nanosecond laser MOPA1064-2000mW

Q-switchedshort-pulsesolid-state

MOPA1064-2000mW: 2 W average power at 1064 nm Our Master Oscillator Power Amplifier - MOPA for short - series contains a diode-pumped power amplifier in addition to a DPSS laser. High peak or high average power - just as your application requires. Due to the special technical design of the laser system, it works in transverse single-mode operation with high peak-to-peak pulse power stability, good average power stability and a short pulse duration of around 1 to 2 ns. The laser can be triggered either via an external signal source or via an internal oscillator using software commands. The MOPA1064-2000 mW is a quasi-CW MOPA with a maximum repetition rate of 20 kHz. It delivers 140 µJ single pulse energy and an average power of up to 2 W. The pulse energy can be set via simple terminal or software commands. The laser system is suitable for laser marking and processing as well as for applications in analytical measurement technologies.
