Digital vibration analyzer CRY2304

FFTindustrialmultichannel

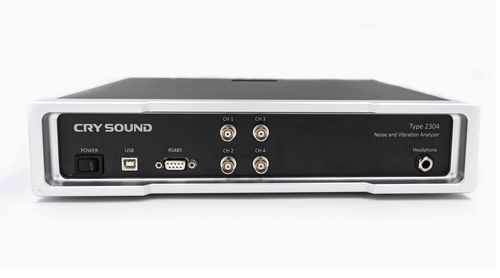

CRY2304 Noise and vibration analyzer is a new type of test instrument for noise and vibration analysis launched by CRYSOUND. The host uses USB 2.0 transmission protocol to communicate with the host computer, and supports synchronous input of noise and vibration signals with 4 channels. Its analysis frequency range is 10 Hz - 80 kHz, and its noise floor is as low as -110 dBV, which is sufficient for high precision acquisition and high-quality analysis of noise and vibration in most cases. Multi-channel acquisition High precision High industrial compatibility Output word, excel reports, access database, graphs and other results Analog signal acquisition channel with ICP power supply provides BNC interface, which can support both noise measurement and vibration measurement RS-485 communication supports Modbus RTU communication protocol, which can be used to trigger instrument test, obtain test results, obtain custom data, etc Rich digital IO interface, including: 6 channels 5V digital IO output, 6 channels 5V digital IO input, 6 channels 12V digital IO output (each channel can provide 200mA current output for driving load) CRY2300 software is designed based on Windows7 and Windows10 operating systems, with simple and beautiful interface and simple and intuitive operation Provide noise analysis, vibration analysis, noise and vibration analysis of a variety of test templates Provide time domain signal analysis, octave analysis, FFT spectrum analysis and other functions Provides flexible curve qualification box line setting and numerical qualification threshold setting
