FFT vibration analyzer CRY2308

industrial

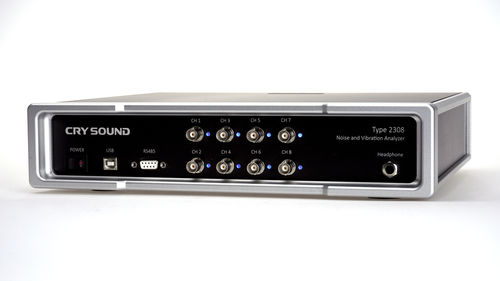

CRY2308 Noise and vibration analyzer is a new type of test instrument for noise and vibration analysis launched by CRYSOUND. The host uses USB 2.0 transmission protocol to communicate with the host computer, and supports synchronous input of noise and vibration signals with 8 channels. Its analysis frequency range is 10 Hz - 80 kHz, and its noise floor is as low as -110 dBV, which is sufficient for high precision acquisition and high-quality analysis of noise and vibration in most cases. Multi-channel acquisition High precision High industrial compatibility The design of CRY2300 software is based on Windows 7 and Windows 10 OS. Its interface is simple and aesthetic, and its operation is simple and intuitive. It provides a variety of test templates for noise analysis, vibration analysis, and mixed analysis of noise and vibration. Supporting multi-channel and multi-parameter sub-area display It provides time domain signal analysis, octave analysis, FFT spectrum analysis and other functions. It provides flexible curve pass line settings and numerical pass threshold settings. The test results are saved in the ACCESS database and exported in the form of test curve. Export of word files and excel sheets is supported. The input port is a BNC port, with switchable ICP power supply design, compatible with noise and vibration measurement, as well as direct input of electric signals. Equipped with RS-485 port for automated process control and test result data interaction, etc.
