Measurement microphone CRY3401-S01

prepolarizedfrequency1/4"

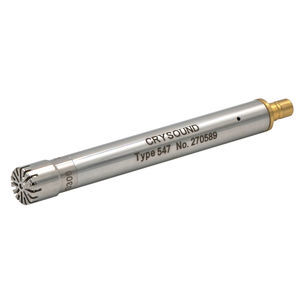

Key Specifications Nominal Sensitivity: 15.8 mV/Pa Dynamic Range: 26 dBA to 142 dB Frequency Range: 4 Hz to 40 kHz ±2 dB Applications High-frequency (ultrasonic) measurements High-definition speakers and NVH measurements High Sound Pressure Level (SPL) measurements Standards IEC 61094 4:1995 Measurement microphones - Part 4 Components CRY3401 1/4 Free-field Prepolarized Microphone CRY3541 1/4 IEPE Preamplifier CRY3401-S01 is a 1/4-inch free-field prepolarized measurement microphone and preamplifier set designed specifically for sensitive acoustic testing in low-noise environments. The unique design of CRY3401-S01 provides it with very low self-noise and a measurement frequency range of up to 40 kHz. It is capable of withstanding sound pressure levels up to 142 dB. It is an excellent general-purpose measurement microphone set suitable for high-definition audio measurements and other ultrasonic acoustic applications.
