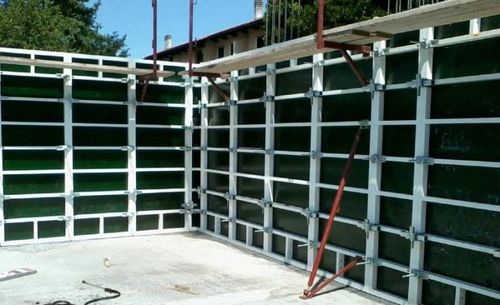

Climbing formwork ALU.280
wallhigh

Climbing formwork - ALU.280 - CSC SRL - wall / high
Climbing formwork - ALU.280 - CSC SRL - wall / high
Climbing formwork - ALU.280 - CSC SRL - wall / high - image - 2
Climbing formwork - ALU.280 - CSC SRL - wall / high - image - 3
Climbing formwork - ALU.280 - CSC SRL - wall / high - image - 4
Climbing formwork - ALU.280 - CSC SRL - wall / high - image - 5
Add to favorites
Compare this product


Characteristics

Type
climbing
Application
wall
Other characteristics
high

Description

ALU.280 ALUMINIUM/WOOD formwork Modular panels for walls Features Dimensions: standard panel 100x280 cm + smaller measures + panels 200x300 and 240x300 for large casting. It is also possible to realize panels high 300 cm Frame: aluminium thickness 100 mm Plywood: thickness 15 mm treated with phenolic resines Corrosion protection: painting or also available in the cheap version not painted Main accessories for panel union: clamps Weight: 21 kg/mq Benefits Lightness: easy maneuverable formwork, but also resistant like metal formworks Versatility: vertically or horizontally panel mounting for reaching the desired heights and producing different kind of items like plinths, lift shafts and columns Ease of assembling and dismantling Technological simplicity: for all the vertically and horizontally coupling is used only one clamp Aesthetics: plywood allows to get a plane casting and permits a high frequency of uses
