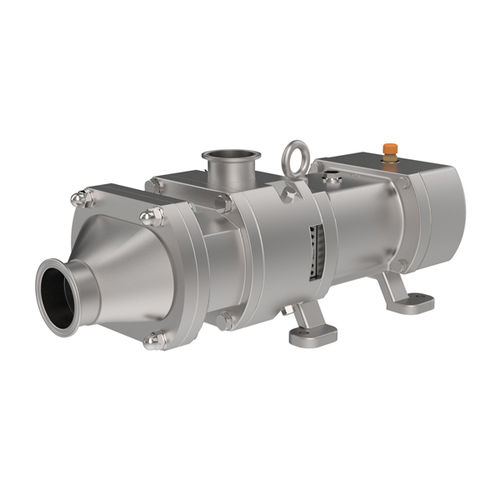

Screw pump TS seriesfor chemicalsfor food productselectric
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Fluid
- for chemicals, for food products
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for pharmaceutical applications, for the food and beverage industry, for the cosmetics industry
- Applications
- washing
- Material
- stainless steel
- Other characteristics
- suction, standard, double
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 230 m³/h
(8,122.37335 ft³/h)- Pressure
16 bar, 25 bar
(232.06 psi, 362.594 psi)- Fluid temperature
Min.: -10 °C
(14 °F)Max.: 140 °C
(284 °F)- Length
152 mm, 300 mm
(6 in, 12 in)- Height
219 mm, 311 mm, 364 mm
(8.62 in, 12.24 in, 14.33 in)
Description
The “TS” double screw volumetric pump represents the perfect union of high performance and stringent requirements thanks to its hygienic design. All parts in contact with the product are made from AISI 316L stainless steel with standard surface finishes of Ra 0.8 micron, in full observance of the stringent EHEDG and 3A standards. One of the main characteristics is that this pump can operate at both low and high speeds and is therefore ideal for CIP washing phases. Thus fully replacing the need to use another centrifugal pump for CIP. With an excellent suction capacity, it is suitable for vacuum applications or when the suction head is low.
Catalogs
GENERAL CATALOGUE
25 Pages
twin screw pumps
4 Pages
