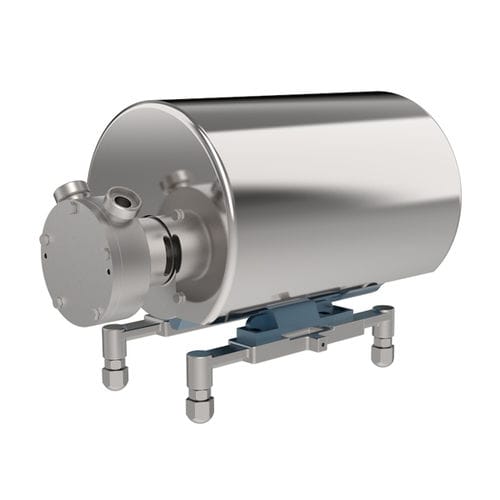

Impeller pump CP seriesacidoilself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- acid, oil
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, chemical, for the food and beverage industry, for the pharmaceutical industry, laboratory, for the cosmetics industry
- Applications
- transfer, dosing, process, spray
- Other characteristics
- flow, in-line
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 7 m³/h
(247.20267 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 120 m
(393'08" )- Power
Min.: 1.1 kW
(1.5 hp)Max.: 4 kW
(5.44 hp)- Fluid temperature
Min.: -10 °C
(14 °F)Max.: 100 °C
(212 °F)- Length
Min.: 395 mm
(16 in)Max.: 510 mm
(20 in)- Width
170 mm, 193 mm, 302.5 mm
(6.69 in, 7.6 in, 11.91 in)- Height
361 mm, 371 mm
(14.21 in, 14.61 in)
Description
Thanks to the special design of the body and impeller and the absence of pulsations, these single-block peripheral impeller pumps are widely used for dosing liquids, in laboratory micro-systems, in-line measuring systems, spray systems and applications where medium-high heads and low flow rates are required. They are also used to transfer clean, non-abrasive liquids with no suspended solids with a maximum viscosity of 250 cps in the food, dairy, beverages and syrups, oil and liqueur industries, in CIP process or in the chemical sector with acid and base solutions as well as in the cosmetic and pharmaceutical sectors. Made from laminated AISI 316L steel they have excellent levels of surface finish.
Catalogs
Peripheral impeller pumps
4 Pages
