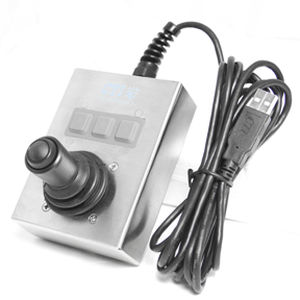

Industrial pointing device M20X9-NX series

stainless steelwaterproofrugged

This series features the Industrial Mouse™ (Joystick Cursor Controller) computer mouse pointer in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for hand held or limited space applications. This design is the perfect solution for harsh or wet environments requiring rugged computer mouse pointers or control input devices and near waterproof sealing. The standard Industrial Mouse™ pointers have all the features of the Industrial Mouse™ family; and when combined with the low profile, N5 joystick knob, it can be held in one hand and easily operated with just the thumb. The three sealed switches perform all mouse functions, as well as allow the operator to select one of eight speed curves. The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob, Serial, PS/2 or USB interface, and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets. An anodized aluminum M2000 holder is available for convenient storage of the M20X9-NX series Industrial Mouse™ computer mouse pointer. The holder has holes for simple screw mounting along side any machine or cabinet. CTI's custom plug-n-play pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.
