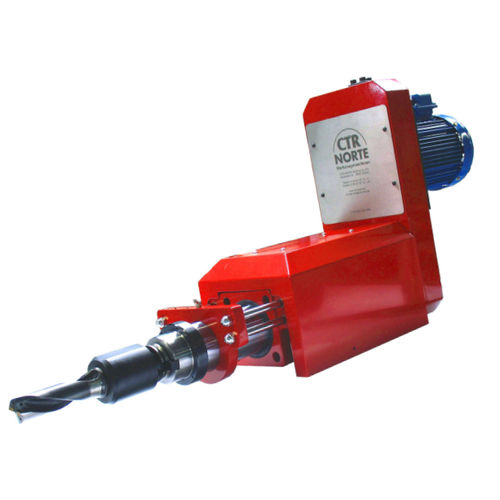

Electro-hydraulic drilling unit CTR-PH-150
Add to favorites
Compare this product
Characteristics
- Drive type
- electro-hydraulic
Description
drilling unit with hydraulic feed
travel 150 mm
Technical Description
max. drilling capacity
D=35 mm / 600 N/mm²
max. quill travel
150 mm
feed force under 35 Bar
25 kN
engine power
1,5 kW
spindle speed
1500 1/min
weight
103 kg
tool holder
SK 40
colour
RAL 3001 signalred
