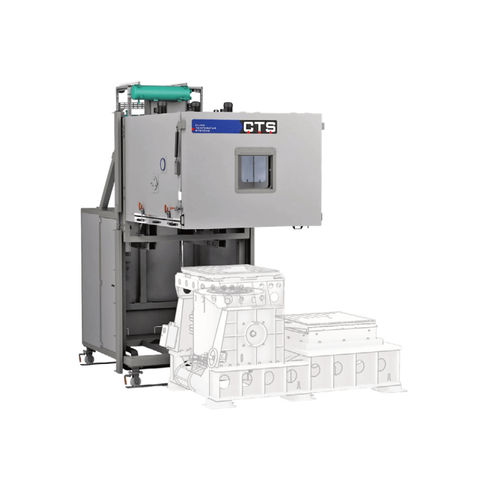

Vibration test chamber TV, CV series

modularhorizontalvertical

The new series of CTS vibration test cabinets offers you a lot of further options in addition to a wide range of standard equipment. Whether vibrations are vertical or horizontal, the modular, standardized assembly can be combined with all shaker types and adapted to your test requirements. We do of course also continue to supply custom sizes on request. Examples for Vibration Test Cabinets, Series TV/CV: Standard version of the product line "TV/CV": • multicolor touch panel / 32 Bit Controller • service-friendly capacitive humidity measurement system (CV) • single-hand operated door handle, lockable • 2 entry port ø 125mm • shelf, stainless steel • error display in plain text • potential free contact for malfunction signal Your benefits: • service-friendly construction • minimum noise level • very high temperature change rates • simple user-friendly operation and programming • low power-consumption datas • optimized parameters for highest testing precision • complies with current CE and EMC regulation Main accessories: • add. entry ports ø 50 mm, 80 mm und 125 mm • panoramic window, sized 570 x 710 mm • add. Pt 100 for temperature measuring on test specimen alternative reversible to controller function • air dryer system • temperature protection for test-specimen • CID software for programming and documentation • ETHERNET interface RJ 45 Test space capacity in liters: • 700, 1100, 1700, 2300 • (Special sizes possible) Options: • mobile design • horizontal and/or vertical • vibration Height-adjustable test • space module increased drive-over height • Other interfaces: RS232, RS485 and USB
