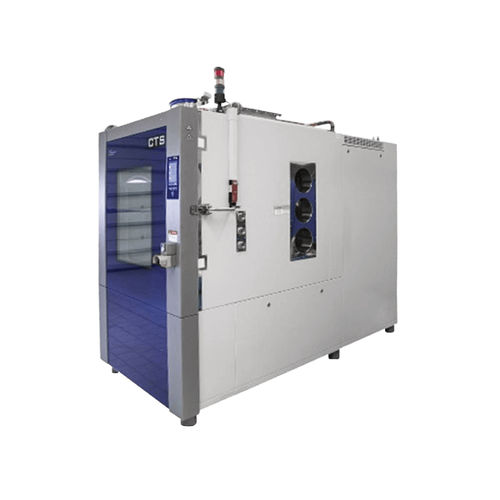

Climate chamber

temperaturefor quality controlfor materials

For tests with combustible and/or explosive media such as oils, fuels or gases which can form explosive mixtures with air. The occurrence of combustible or explosive aerosol-air or gas-air mixtures can be part of a test, but in most cases it is an undesirable event that only occurs in the event of a fault, e.g. if there are leakages in the test item or test set-up and the substance escapes into the test space atmosphere. This possible hazard potential must be determined and evaluated by the operator by means of a risk assessment with subsequent zone classification. Various boundary conditions such as data on the medium components, the concentration, test temperatures, the test set-up, the existence of ignition sources, etc. play an important role in the evaluation. Based on the customer's risk assessment and zone classification, appropriate safety measures are then necessary on the test cabinet if there is a corresponding risk of fire or explosion. Possible safety concepts can then be carried out, in conformity with the ATEX directive, e.g. by inerting or indirect temperature control as a primary or secondary means of anti-explosion protection. CTS offers solutions for your specific use case CTS offers different variants for explosion zones 1 and 2 based on standard devices, test chambers or special solutions. Thus, we always place particular emphasis on planning and creating concepts for your individual, specific application. Our experts will be happy to advise you on this so that we can offer you a complete security package tailored to your needs on request.
