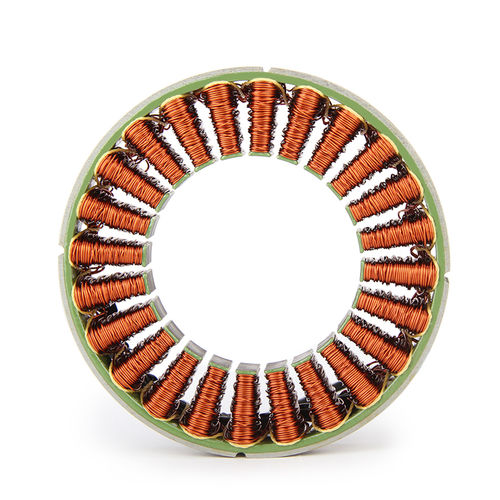

Frameless torque motor RI100 KV105DCthree-phaseBLDC
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC, three-phase
- Type
- BLDC
- Voltage
- 48 V, 24 V, 36 V
- Protection class
- rugged, robust
- Configuration
- permanent magnet, frameless
- Number of poles
- multipole
- Cooling mechanism
- air-cooled
- Applications
- packaging machine, for robotics, industrial, for medical applications, heavy-duty, agricultural, for automotive applications
- Other characteristics
- direct-drive, high-torque, high-speed, high-power, low-noise, high-inertia, precision, with built-in encoder
- Power
Max.: 2,064 W
(2.806 hp)Min.: 744 W
(1.012 hp)- Intensity
Max.: 43 A
Min.: 16 A
- Torque
Max.: 4.92 Nm
(3.6288 ft.lb)Min.: 1.75 Nm
(1.2907 ft.lb)- Rotational speed
1,460 rpm, 2,220 rpm, 3,260 rpm
(9,173.45 rad.min-1, 13,948.67 rad.min-1, 20,483.18 rad.min-1)- Diameter
104 mm
(4.09 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
RI100 KV105
$148.90
Available points：0 Points ▏ Points reward：148 Points
Promotion
Every $200, $20 off
• Voltage:12V-48V
• Lower cogging torque for easy control
• High torque density and dynamics
• High precision control with 0.01°
Specifications-R1100
Weight(g) : 500
Voltage(V) : 24/36/48
Rated Torque(N.m) : 1.76
Peak Torque(N.m) : 4.95
Max Speed@Rated Torque(Rpm) : 1460/2220/3230
Rated Current(A) : 16.9
Peak Current(A) : 47.6
Kt(N.m/A) : 0.104
Ke(V/rpm) : 0.0109
leading wire : 200mm 16#AWG
Kv(Rpm/v) : 101
Km(Nm/Vw) : 0.2664
Moment of inertia(g-cm2) : 215.51
Pole-pairs : 14
Phase to Phase resistance(mQ) : 126
Phase to Phase Inductance(uH) : 366.7
OD(mm) : 104
ID(mm) : 45
Height(mm) : 26
Max Torque Weight Ratio(N.m/kg) : 9.9
