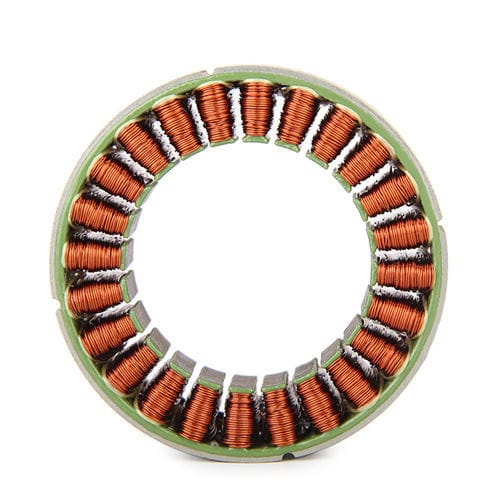

Frameless torque motor RI60 KV120
DCthree-phaseBLDC

frameless torque motor
frameless torque motor
frameless torque motor
frameless torque motor
frameless torque motor
frameless torque motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC, three-phase
Type
BLDC
Voltage
48 V, 24 V, 36 V
Protection class
rugged, robust
Configuration
permanent magnet, frameless
Number of poles
multipole
Cooling mechanism
air-cooled, air-cooled
Applications
for machine tools, packaging machine, for robotics, industrial, for medical applications, heavy-duty, for automotive applications
Other characteristics
direct-drive, high-torque, high-precision, high-speed, high-power, low-noise, high-inertia, precision
Power

Min.: 302.4 W
(0.411 hp)

Max.: 864 W
(1.175 hp)

Intensity

Min.: 6 A

Max.: 18 A

Torque

Min.: 0.58 Nm
(0.4278 ft.lb)

Max.: 1.64 Nm
(1.2096 ft.lb)

Rotational speed

1,610 rpm, 2,560 rpm, 3,495 rpm
(10,115.93 rad.min-1, 16,084.95 rad.min-1, 21,959.73 rad.min-1)

Diameter

60 mm
(2.36 in)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

25 °C
(77 °F)

Description

RI60 KV120 $98.90 Available points：0 Points ▏ Points reward：98 Points Promotion Every $200, $20 off • Voltage:12V-48V • Lower cogging torque for easy control • High torque density and dynamics • High precision control with 0.01° Specifications-RI60 Weight(g) : 155.9 Voltage(V) : 24/36/48 Rated Torque(N.m) : 0.57 Peak Torque(N.m) : 1.63 Max Speed@Rated Torque(Rpm) : 1610/2560/3495 Rated Current(A) : 6.7 Peak Current(A) : 19.2 Kt(N.m/A) : 0.085 Ke(V/rpm) : 0.0089 leading wire : 200mm 18#AWG Kv(Rpm/v) : 124 Km(Nm/Vw) : 0.0812 Moment of inertia(g-cm2) : 33.05 Pole-pairs : 14 Phase to Phase resistance(mQ) : 900 Phase to Phase Inductance(uH) : 877.5 OD(mm) : 60 ID(mm) : 30 Height(mm) : 22 Max Torque Weight Ratio(N.m/kg) : 10.46
