DC torque motor R60 KV115
BLDC48 Vmaintenance-free

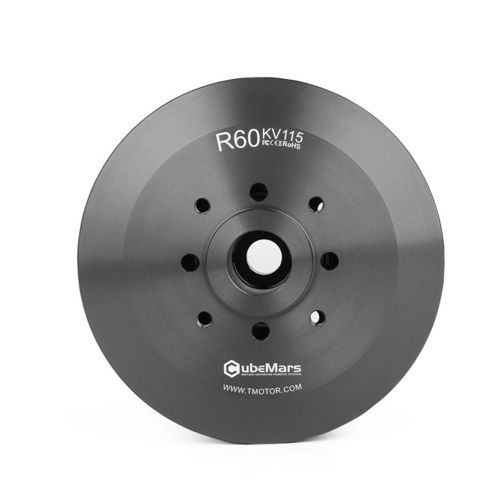

DC torque motor - R60 KV115 - CubeMars - BLDC / 48 V / maintenance-free
DC torque motor - R60 KV115 - CubeMars - BLDC / 48 V / maintenance-free
DC torque motor - R60 KV115 - CubeMars - BLDC / 48 V / maintenance-free - image - 2
DC torque motor - R60 KV115 - CubeMars - BLDC / 48 V / maintenance-free - image - 3
DC torque motor - R60 KV115 - CubeMars - BLDC / 48 V / maintenance-free - image - 4
DC torque motor - R60 KV115 - CubeMars - BLDC / 48 V / maintenance-free - image - 5
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
BLDC
Voltage
48 V
Protection class
maintenance-free
Configuration
permanent magnet, external rotor
Number of poles
multipole
Cooling mechanism
air-cooled
Applications
for robotics, for the semiconductor industry, for automotive applications
Other characteristics
custom, high-torque, high-precision, high-speed, high-power, low-noise
Power

Max.: 1,344 W
(1.827 hp)

Min.: 432 W
(0.587 hp)

Intensity

Max.: 28 A

Min.: 9 A

Torque

0.75 Nm
(0.5532 ft.lb)

Max.: 2.3 Nm
(1.6964 ft.lb)

Min.: 0.75 Nm
(0.5532 ft.lb)

Rotational speed

4,150 rpm
(26,075.22 rad.min-1)

Diameter

69 mm
(2.72 in)

Operating temperature

25 °C
(77 °F)

Description

R60 KV115 $177.90 Available points：0 Points ▏ Points reward：177 Points Promotion Every $200, $20 off • Integrated with hall sensors, E-deg120±20° • Special heat dissipation design • Low cogging torque&rotor inertia • Max torque 2.3Nm Specifications-R60 Weight(g) : 248 Voltage(V) : 48 Rated Torque(Nm) : 0.75 Peak Torque(Nm) : 2.3 Max Speed@Rated Torque(rpm) : 4150 Rated Current(A) : 9 Peak Current(A) : 28 Kt(Nm/A) : 0.083 Kv(RPM/V) : 115 Ke(V/rpm) : 0.0087 Km(Nm/Vw) : 0.171 Number of Pôle-Pair : 14 Résistance Phase to Phase(mQ) : 235 Inductance Phase to Phase(uH) : 183 OD(mm) : 4>69 Height(mm) : 26 Max torque weight ratio(Nm/kg) : 9.3
