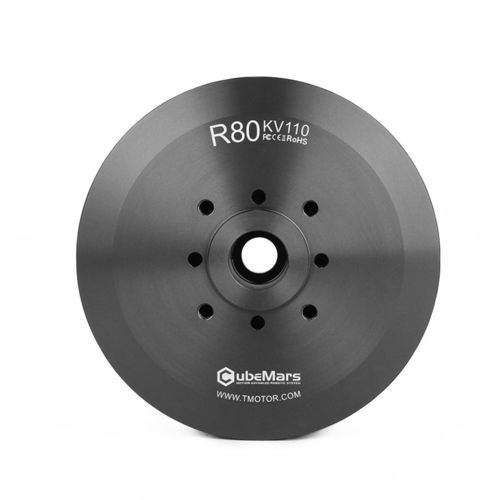

DC torque motor R80 KV110BLDC48 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- BLDC
- Voltage
- 48 V
- Configuration
- permanent magnet, external rotor
- Number of poles
- multipole
- Cooling mechanism
- air-cooled
- Applications
- for robotics, packaging machine, for medical applications, for the semiconductor industry, for automotive applications
- Other characteristics
- high-torque, high-precision, high-speed, high-power, low-noise
- Power
Max.: 1,824 W
(2.48 hp)Min.: 720 W
(0.979 hp)- Intensity
Max.: 38 A
Min.: 15 A
- Torque
1.6 Nm
(1.1801 ft.lb)Max.: 4 Nm
(2.9502 ft.lb)Min.: 1.6 Nm
(1.1801 ft.lb)- Rotational speed
4,600 rpm
(28,902.65 rad.min-1)- Diameter
87 mm
(3.43 in)- Operating temperature
25 °C
(77 °F)
Description
R80 KV110
$258.90
Available points：0 Points ▏ Points reward：258 Points
Promotion
Every $200, $20 off
• Integrated with hall sensors, Edeg120±20°
• Special heat dissipation design
• Low cogging torque&rotor inertia
• Max torque 4Nm
Specifications-R80
Weight(g) : 354
Voltage(V) : 48
Rated Torque(Nm) : 1.3
Peak Torque(Nm) : 4
Max Speed@Rated Torque(rpm) : 4600
Rated Current(A) : 15
Peak Current(A) : 46
Kt(Nm/A) : 0.0868
Kv(RPM/V) : 110
Ke(V/rpm) : 0.0091
Km(Nm/Vw) : 0.246
Number of Pôle-Pair : 21
Résistance Phase to Phase(mQ) : 125
Inductance Phase to Phase(uH) : 87
OD(mm) :
