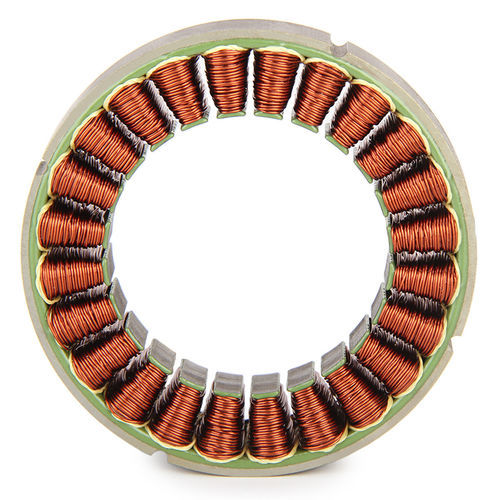

Frameless torque motor RI70 KV95DCthree-phaseBLDC
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC, three-phase
- Type
- BLDC
- Voltage
- 48 V, 24 V, 36 V
- Protection class
- rugged, robust
- Configuration
- permanent magnet, frameless
- Number of poles
- multipole
- Cooling mechanism
- air-cooled, air-cooled
- Applications
- for machine tools, packaging machine, for robotics, industrial, for medical applications, heavy-duty, for automotive applications
- Other characteristics
- direct-drive, high-torque, high-precision, high-speed, high-power, low-noise, high-inertia, with built-in encoder
- Power
Max.: 1,056 W
(1.436 hp)Min.: 379.2 W
(0.516 hp)- Intensity
Max.: 22 A
Min.: 8 A
- Torque
Max.: 2.63 Nm
(1.9398 ft.lb)Min.: 0.94 Nm
(0.6933 ft.lb)- Rotational speed
1,450 rpm, 2,300 rpm, 3,125 rpm
(9,110.62 rad.min-1, 14,451.33 rad.min-1, 19,634.95 rad.min-1)- Diameter
76 mm
(2.99 in)- Operating temperature
25 °C
(77 °F)Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
RI70 KV95
$123.90
Available points：0 Points ▏ Points reward：123 Points
Promotion
Every $200, $20 off
• Voltage:12V-48V
• Lower cogging torque for easy control
• High torque density and dynamics
• High precision control with 0.01°
Specifications-RI70
Weight(g) : 270.4
Voltage(V) : 24/36/48
Rated Torque(N.m) : 0.94
Peak Torque(N.m) : 2.68
Max Speed@Rated Torque(Rpm) : 1450/2300/3125
Rated Current(A) : 8.4
Peak Current(A) : 24
Kt(N.m/A) : 0.1118
Ke(V/rpm) : 0.0117
leading wire : 200mm 16#AWG
Kv(Rpm/v) : 94
Km(Nm/Vw) : 0.1571
Moment of inertia(g-cm2) : 92.15
Pole-pairs : 14
Phase to Phase resistance(mQ) : 418
Phase to Phase Inductance(uH) : 622.7
OD(mm) : 76
ID(mm) : 38
Height(mm) : 22
Max Torque Weight Ratio(N.m/kg) : 9.91
