DC motor G35
BLDC12 Vwaterproof

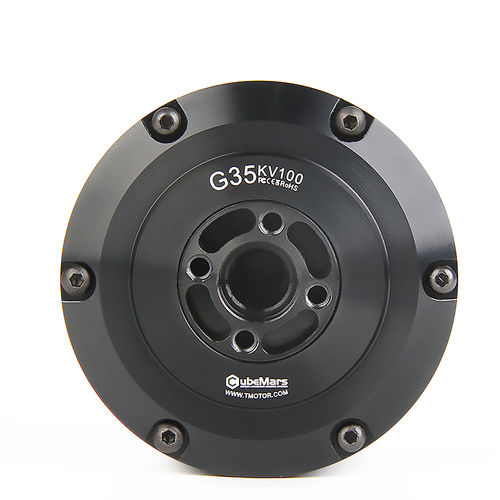

DC motor - G35 - CubeMars - BLDC / 12 V / waterproof
DC motor - G35 - CubeMars - BLDC / 12 V / waterproof
DC motor - G35 - CubeMars - BLDC / 12 V / waterproof - image - 2
DC motor - G35 - CubeMars - BLDC / 12 V / waterproof - image - 3
DC motor - G35 - CubeMars - BLDC / 12 V / waterproof - image - 4
DC motor - G35 - CubeMars - BLDC / 12 V / waterproof - image - 5
DC motor - G35 - CubeMars - BLDC / 12 V / waterproof - image - 6
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
BLDC
Voltage
12 V
Protection class
waterproof, dust-proof
Configuration
hollow-shaft, with integrated driver and coder, with slip ring, large
Number of poles
multipole
Applications
high-temperature
Other characteristics
high-torque, high-precision, low-speed, low-inertia
Intensity

1.45 A

Torque

0.15 Nm, 0.46 Nm
(0.1106 ft.lb, 0.3393 ft.lb)

Rotational speed

900 rpm
(5,654.87 rad.min-1)

Diameter

41 mm
(1.61 in)

Description

• Large Center Hole • Low Cogging & Consumption • Integrate with Electrical Slip Rings • For Gimbal and Automatic Driving Systems • Waterproof and Dustproof Specif ications-GL35 Model No./ Kv : GL35 KV100 Motor Size (mm) : 041.8*21 Stator Technology : Anti-rust treatment; 180° C high temperature-resisting coatings Configuration : 12N14P Shaft Diameter (mm) : 06 Kt (Nm/A) : 0.1 Bearing : Imported MR128ZZ Magnet Temperature Resistance Grade : Class E 150*0 Lead (mm) : wiring pad Enamelled Wires Temperature Resistance Grade : Class H 180°C Coil Withdraw Voltage : 500V/5S Rotor Dynamic Balance Standard : 61 IP : IP45 KV Value KV100 Stall current (A) : 4.5 Phase to Phase résistance (O) : 3.33 Rated Voltage (V) : 16 Phase to Phase inductance (mH) : 2.1 Package Size (mm) : 111 *86*43 Motor Weight (g) : 90
