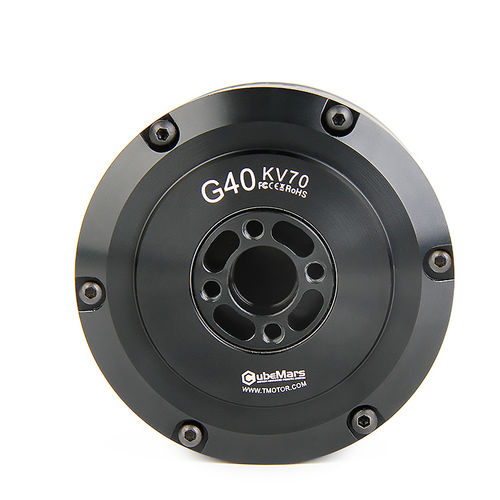

DC motor G40BLDCwaterproofdust-proof
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- BLDC
- Protection class
- waterproof, dust-proof
- Configuration
- with built-in electromagnetic brake, hollow-shaft, with integrated driver and coder, with slip ring, large
- Number of poles
- multipole
- Applications
- for robotics
- Other characteristics
- high-efficiency, low-voltage, CANopen communication, direct-drive, high-torque, low-noise, precision, low-speed, low-inertia, high-resolution, integrated-drive, with built-in encoder
- Power
Min.: 26.4 W
(0.036 hp)Max.: 80 W
(0.109 hp)- Intensity
1.65 A
- Torque
0.25 Nm, 0.73 Nm, 0.98 Nm
(0.1844 ft.lb, 0.5384 ft.lb, 0.7228 ft.lb)- Rotational speed
600 rpm
(3,769.91 rad.min-1)- Diameter
46.5 mm
(1.83 in)
Description
• Large Center Hole
• Low Cogging & Consumption
• Integrate with Electrical Slip Rings
• For Gimbal and Automatic Driving Systems
• Waterproof and Dustproof
Specif ications-GL40
Model No./ Kv : GL40 KV70
Motor Size (mm) : 046.5*21.5
Stator Technology : Anti-rust treatment; 180° C high temperature-resisting coatings
Configuration : 24N28P
Shaft Diameter (mm) : 08
Kt (Nm/A) : 0.14
Bearing : Imported 6700ZZ
Magnet Temperature Resistance Grade : Class E 150*C
Lead (mm) : wiring pad
Enamelled Wires Temperature Resistance Grade : Class H 180°C
Coil Withdraw Voltage : 500V/5S
Rotor Dynamic Balance Standard : 74
IP : IP45
KV Value : KV70
Stall current (A) : 5
Phase to Phase résistance (O) : 3.6
Rated Voltage (V) : 16
Phase to Phase inductance (mH) : 1.8
Package Size (mm) : 111*86*43
Motor Weight (g) : 107
