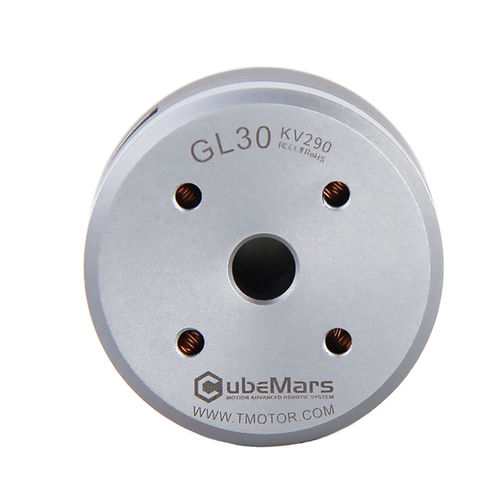

DC motor GL30

BLDC12 Vwaterproof

GL30 $50.99 Available points：0 Points ▏ Points reward：50 Points Promotion Every $200, $20 off • Small size, Ultralight • Low Cogging & Consumption • For gimbal systems • Large hollow shaft • Compatible with AlexMos Gimbal Controller Specif ications-GL30 Model No./ Kv : GL30 KV290 Motor Size (mm) : 034.5*1 5.7 Stator Technology : Anti-rust treatment; 180° C high temperature-resisting coatings Configuration : 12N14P Shaft Diameter (mm) : 06 Kt (Nm/A) : 0.033 Bearing : Imported MR128ZZ Magnet Temperature Resistance Grade : Class E 150°C Lead (mm) : wiring pad Enamelled Wires Temperature Resistance Grade : Class H 180°C Coil Withdraw Voltage : 500V/5S Rotor Dynamic Balance Standard : 24.2 IP : IP45 KV Value : KV290 Rated Current (A) : 2.3 Rated Torque (Nm) : 0.08 Stall current (A) : 8.5 Stall torque (Nm) : 0.28 Phase to Phase résistance (O) : 1.53 Rated Voltage (V) : 12 Rated Speed (rpm) : 2200 Phase to Phase inductance (mH) : 0.33 Package Size (mm) : 111 *86*43 Motor Weight (g) : 41
