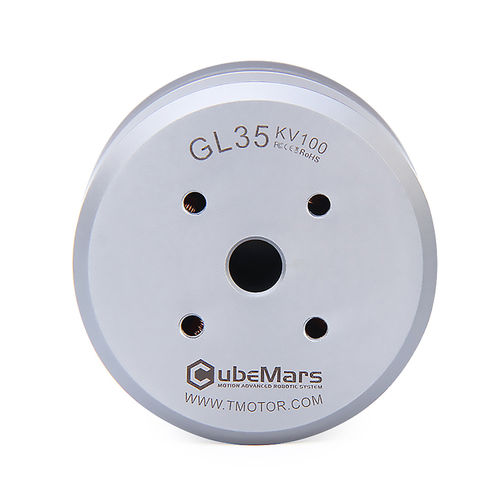

DC motor GL35

BLDCwaterproofdust-proof

GL35 $54.99 Available points：0 Points ▏ Points reward：54 Points Promotion Every $200, $20 off • Small size, Ultralight • Low Cogging & Consumption • For gimbal systems • Large hollow shaft • Compatible with AlexMos Gimbal Controller Specifications-GL35 Model No./ Kv : GL35 KV100 Motor Size (mm) : 041.8*21 Stator Technology : Anti-rust treatment; 180° C high temperature-resisting coatings Configuration : 12N14P Shaft Diameter (mm) : 06 Kt (Nm/A) : 0.1 Bearing : Imported MR128ZZ Magnet Temperature Resistance Grade : Class E 150*0 Lead (mm) : wiring pad Enamelled Wires Temperature Resistance Grade : Class H 180°C Coil Withdraw Voltage : 500V/5S Rotor Dynamic Balance Standard : 61 IP : IP45 KV Value : KV100 Rated Current (A) : 1.45 Rated Torque (Nm) : 0.15 Stall current (A) : 4.5 Stall torque (Nm) : 0.46 Phase to Phase résistance (O) : 3.33 Rated Speed (rpm) : 900 Phase to Phase inductance (mH) : 2.1 Package Size (mm) : 111 *86*43 Motor Weight (g) : 90
