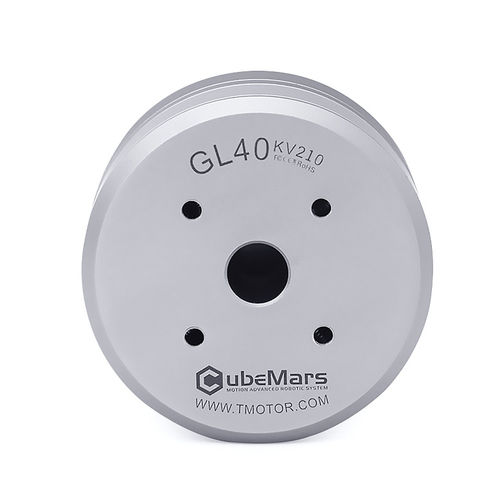

DC motor GL40 series
BLDCwaterproofdust-proof

DC motor
DC motor
DC motor
DC motor
DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
BLDC
Protection class
waterproof, dust-proof
Configuration
hollow-shaft, small
Number of poles
multipole
Torque

0.25 Nm, 0.33 Nm, 0.73 Nm, 0.98 Nm
(0.1844 ft.lb, 0.2434 ft.lb, 0.5384 ft.lb, 0.7228 ft.lb)

Rotational speed

600 rpm, 2,200 rpm
(3,769.91 rad.min-1, 13,823.01 rad.min-1)

Diameter

46.5 mm
(1.83 in)

Description

GL40 $72.99 Available points：0 Points ▏ Points reward：72 Points Promotion Every $200, $20 off • Small size, Ultralight • Low Cogging & Consumption • For gimbal systems • Large hollow shaft • Compatible with AlexMos Gimbal Controller Specifications-GL40 Model No./ Kv : GL40 KV70 Motor Size (mm) : 046.5*21.5 Stator Technology : Anti-rust treatment; 180° C high temperature-resisting coatings Configuration : 24N28P Shaft Diameter (mm) : 08 Kt (Nm/A) : 0.14 Bearing : Imported 6700ZZ Magnet Température Résistance Grade : Class E 150*C Lead (mm) : wiring pad Enamelled Wires Température Résistance Grade : Class H 180°C Coil Withdraw Voltage : 500V/5S Rotor Dynamic Balance Standard : 74 IP : IP45
