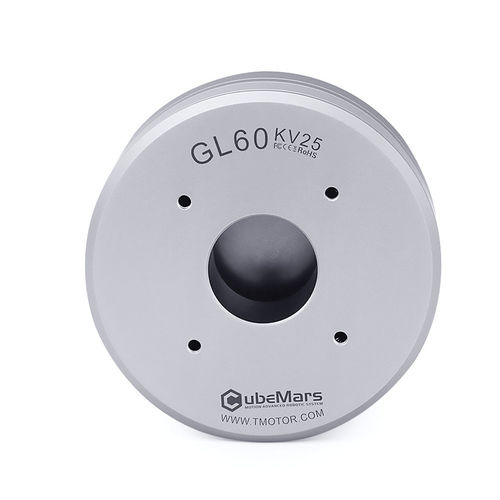

DC motor GL60 series

BLDC24 Vwaterproof

GL60 $108.99 Available points：0 Points ▏ Points reward：108 Points Promotion Every $200, $20 off • Small size, Ultralight • Low Cogging & Consumption • For gimbal systems • Large hollow shaft • Compatible with AlexMos Gimbal Controller Specifications-GL60 Model No./ Kv : GL60 KV25 Motor Size (mm) : 069*22.3 Stator Technology : Anti-rust treatment; 180* C high temperature-resisting coatings Configuration : 24N28P Shaft Diameter (mm) : 021 Kt (Nm/A) : 0.4 Bearing : Imported 6700ZZ Magnet Temperature Resistance Grade : Class E 150*C Lead (mm) : wiring pad Enamelled Wires Temperature Resistance Grade : Class H 180*C Coil Withdraw Voltage : 500V/5S Rotor Dynamic Balance Standard : 355 IP : IP45 KV Value : KV25 Rated Current (A) : 1.43 Rated Torque (Nm) : 0.6 Stall current (A) : 4.2 Stall torque (Nm) : 1.75 Phase to Phase résistance (O) : 4.6 Rated Voltage (V) : 24 Rated Speed (rpm) : 350 Phase to Phase inductance (mH) : 2.72 Package Size (mm) : 163*125*43 Motor Weight (g) : 230
