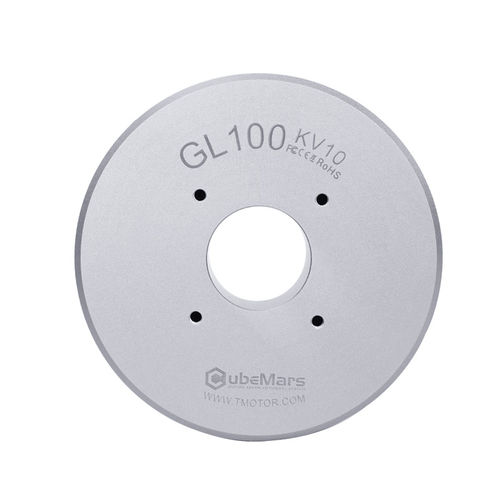

DC motor GL100 series

BLDC24 Vwaterproof

GL100 $272.99 Available points：0 Points ▏ Points reward：272 Points Promotion Every $200, $20 off • Small size, Ultralight • Low Cogging & Consumption • For gimbal systems • Large hollow shaft • Compatible with AlexMos Gimbal Controller Specifications-GLl 00 Model No./ Kv : GL100 KV10 Motor Size (mm) : 0106.8*34.2 Stator Technology : Anti-rust treatment; 180° C high temperature-resisting coatings Configuration : 36N40P Shaft Diameter (mm) : 030 Kt (Nm/A) : 1 Bearing : Imported 6707ZZ Magnet Température Résistance Grade : Class E 150*C Lead (mm) : wiring pad Enamelled Wires Température Résistance Grade : Class H 180°C Coil Withdraw Voltage : 1000V/2S Rotor Dynamic Balance Standard : 2310 IP : IP45 KV Value : KV10 Rated Current (A) : 2.8 Rated Torque (Nm) : 3 Stall current (A) : 8.4 Stall torque (Nm) : 7.7 Phase to Phase résistance (Q) : 2.6 Rated Voltage (V) : 24 Rated Speed (rpm) : 140 Phase to Phase inductance (mH) : 2.35 Package Size (mm) : 186*146*59 Motor Weight (g) : 698
