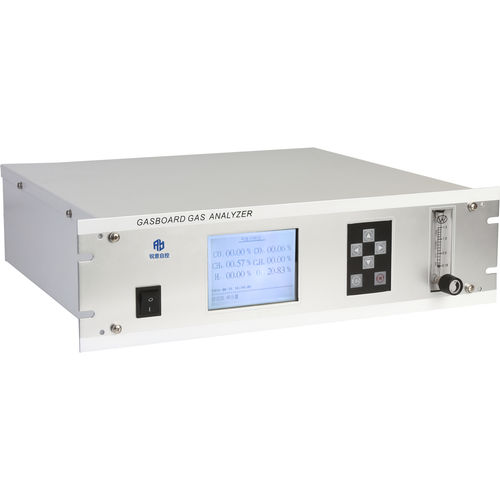

Syngas analyzer Gasboard-3100

process gasCO2/02CO

Introduction Gasboard-3100 is a stationary syngas analyzer based on NDIR ,TCD and electrochemical technology, it can simultaneously measure CO, CO2, CH4, H2 , O2 , CnHm, C2H2 , C2H4 or any of their combination and calculate heat value. Features • PCT approved product based on IR & TCD technologies to measure syngas composition. (EU and US Authorization No.: EP2796856 , US9857323). • Replacement to gas chromatography, mass spectrometry. • Patented NDIR and TCD technology, including ECD technology for reliable measurement of eight gases. • High-selectivity CH4 gas sensor, no interference from other hydrocarbons. • Fully compensated H2 sensor, no interference from CO, CO2, CH4 based on intelligent correction. • Integrated RS232/RS485 digital output with 4-20mA analog output. • Built-in auto-zero pump, efficiently decrease the calibration frequency. • Modular sensor design , easy maintenance. Specifications • Gas: CO/CO2/CH4/H2/O2/C2H2/C2H4/CnHm*/Heat Value • Measurement Principle: CO/CO2/CH4/C2H2/C2H4/CnHm：NDIR; H2：TCD;O2：ECD • Measurement Range:CO/CO2/CH4/H2:(0~100)%;O2：(0~25)%;C2H2/C2H4/CnHm：(0~10)%（optional） • Accuracy: CO/CO2/CH4/C2H2/C2H4/CnHm：±1%F.S.; O2/H2：±2%F.S. • Resolution:0.01% • Repeatability:≤1% • Response time:T90＜15s (NDIR) • Optimal flow Rate:(0.7~1.2) L/min • Inlet Gas Pressure:(2~50) kPa • Gas Condition: No Tar, No Dust and No Water • Communication: RS-485/RS-232，(4-20) mA • Power Supply:100~240VAC，100W • Display: LCD Display
