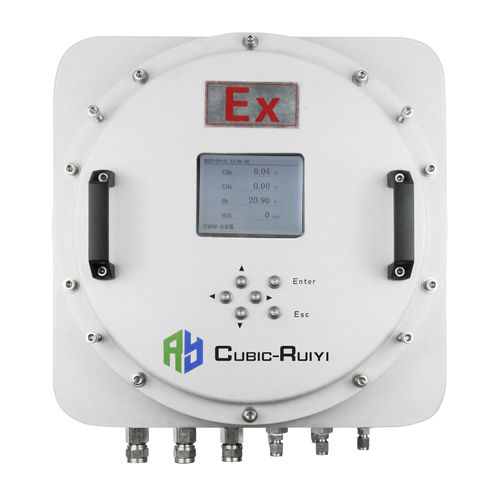

Biogas analysis system Gasboard-3500

Introduction Online Infrared Gas Analysis System Gasboard-3500 is an online monitoring system with wall-mounted ex-proof enclosure, mainly used for continuous measurement for different combustible fuel gases, such as biogas, syngas, natural gas and so on. Composed by various sensors, Gasboard-3500 has a very flexible configuration and can measure CH4, CnHm, CO, CO2, H2, O2, H2S, Calorific value, Wobbe index, etc. It is widely used in different industrial hazardous area, such as biogas plant, landfill plant, biomethane, natural gas city gate, LNG transportation and so on. Besides combustible gas quality check, it can also be used for calorific value adjustment of natural gas or LNG vaporized gas, H2 & NG gas blending, optimization of air-fuel ratio for turbines and furnaces and other applications. Features • High-speed response and continuous measurement based on NDIR and other technologies • Real time calculation of calorific value and wobbe index • No carrier gas needed, replacement to gas chromatography, mass spectrometry • Modular sensor design ensures simple maintenance • EX-Proof design with CNEX certification (ExdⅡCT6 Gb) • Optional air purging module can prolong electrochemical sensor lifetime • Thermostatic design for sensors to reduce temperature fluctuation influence • All parts contacting with sample gas are made of high corrosion resistant material • Auto diagnosis function to check sensor status quickly • Capable of measuring multiple sampling channels Specifications Technology: NDIR, TCD, ECD Measure Range: CO/CO2/CH4/CnHm: (0~100)% O2: (0~25)% H2S: (0~9999)ppm *Measurement range can be customized Resolution: CH4, CnHm, CO, CO2, H2, O2: 0.01%; H2S: 1ppm
