CO sensor Gasboard‐2105
CH4CO2SO2

CO sensor - Gasboard‐2105 - Cubic Instruments (Wuhan) Ltd. - CH4 / CO2 / SO2
CO sensor - Gasboard‐2105 - Cubic Instruments (Wuhan) Ltd. - CH4 / CO2 / SO2
Add to favorites
Compare this product


Characteristics

Gas type
CO, CH4, CO2, SO2, nitrogen oxide
Technology
NDIR
Applications
for air quality monitoring
Output
RS-485, RS-232
Other characteristics
outdoor
Measuring range (ppm)

Min.: 0 unit

Max.: 5,000 unit

Description

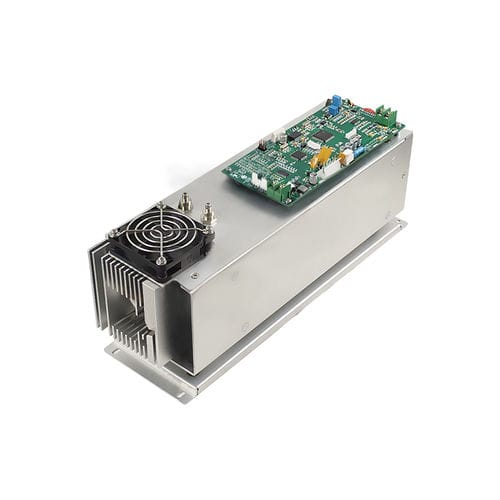

Introduction Gasboard-2105 Micro flow NDIR gas bench adopt independent intellectual property rights and international PCT patent (PCT/CN2018100767) dual‐chamber sensor technology. The gas chamber is composed of the measured gas chamber and the reference gas chamber. The Gasboard‐2105 serials uses a dual chamber structure and special filters to solve environmental temperature instability and aging of electronic components. With improved accuracy, stability and anti‐interference, it is suitable for low range vehicle exhaust emission detection and environmental monitoring. PCT/CN NO.: 2018/100767 US Authorization No.: US11079322 Features One sensor bench measure one gas Patent (PCT/CN2018100767) dual‐chamber sensor with measured gas and the reference gas for high accuracy Except SO2 and NO, it also can measure CO, CO2, CH4 and SF6 Automatic temperature compensation Built-in moisture adjustment device, eliminate the interference of H2O Measurement range can be customized Good stability and long life Specifications Gas Type: SO2, NO, CO,CO2,CH4 Technology: Micro Flow NDIR Applications: Combustion Optimization. IAQ Monitoring Personal Safety Detection TOC Analytic Industrial Processing Control Pollution Emission Monitoring Gas Analyzer / System Integration Other characteristics:RS 232 ; 4‐20mA (Optional);±2%FS accuracy; 1ppm/0.01% resolution;
