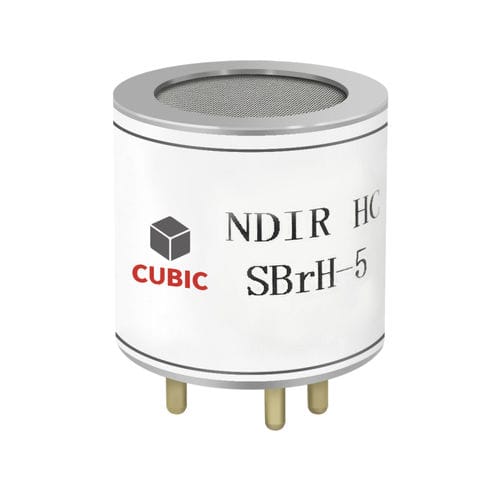

CH3Br gas sensor SBrH

NDIRinfraredminiature

The miniature NDIR CH3Br sensor SBrH detects methyl bromide (CH3Br) concentration from 0 to 5% based on NDIR technology, which is superior to thermal catalysis and heat conduction technology. It has the advantages of convenient operation, accurate measurement, reliable operation, simultaneous output of voltage and serial port, and dual beam design. To meet the different requirements of industrial field and laboratory measurement, it is widely used in gas detection and analysis in fields such as fumigation, chemical industry, coal mine, medical treatment, and laboratory. Features NDIR technology, with long life and full measurement range Meet the explosion-proof grade Ex ia IIC T4 Ga Internal full range temperature compensation Diffusion sampling, stable performance High precision, high resolution 0.01% Small size and fast response Antiseptic Easy to install and reduce maintenance Compatible with digital and analog voltage signal output Applications ▪ Gas drainage monitoring ▪ Chemical, petroleum, metallurgy, oil depots, liquefied gas stations, paint jobs, gas transmission and distribution Specifications Measurement range 0~5%vol Resolution 0.01% Working voltage 3.5-6VDC Output voltage 0.4V-2VDC/ RS232 Response time T90 5year Weight 18g
