- Automatic filling machine
- Cukurova Muhendislik Elektrik Elektronik Mak. San.ve tic. A.S.

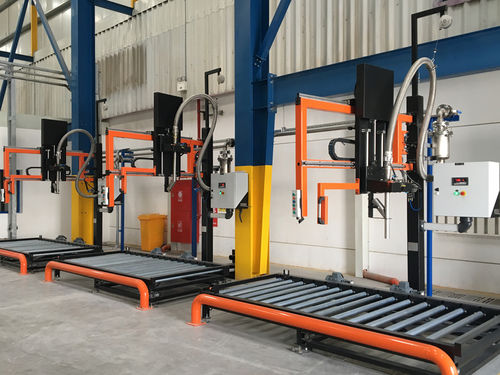

Drum filling machine automaticIBCdrum
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Container type
- drum, IBC
- Product applications
- drum
- Other characteristics
- PLC-controlled, with conveyor, pneumatic
- Capacity
Min.: 1,500 kg
(3,306.93 lb)Max.: 2,000 kg
(4,409.25 lb)
Description
Your benefits
» High reliability and durability of the equipment.
» Manual feeding and evacuation of containers.
» Possibility of incorporating free roller conveyors.
» Manual alignment of the filling lance and the bunghole.
» Low cost and high efficiency solution
» Automatic weighted filling.
» Manuel filling
» Electric or pneumatic dosing lance movement.
» Quick installation
» Simple installation
Technical Specifications
Performance - 180 kg/dak. (1 ton / 5 min.)
Filling Error - ±%0,5
Drum IBC or Varil Qty - 1 pcs IBC or 4 pcs Drum 4 pcs
Structure Material - Karbon AISI 304L – 316L Stainless Steel
Filling Line - AISI 304L – 316L paslanmaz çelik
Filling Temperature - 0-130 °C
Filling Speed - Two Stage – Proportional
Control System - PLC & HMI – Filling Controller
Communication - RS232 – RS485 – Profibus – Profinet
Printer - Yes
