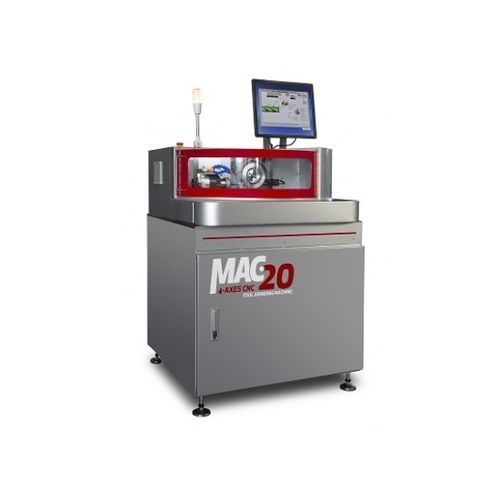

Tool grinding machine MAC 20

universalCNCautomatic

Through a precision electronic probe, MAC 20 automatically positions the tool to be sharpened according to the programming software indications: each single tool program can be stored inside a special library to be then recalled for another sharpening cycle Technical Data Tool Ø 2 to 20 mm Maximum and minimum tool length 35 - 250 mm Grinding wheel motor power 1 HP Grinding wheel motor speed 4200 rpm Stepper motors with screws and precision guides X-axis travel 300 mm Y-axis travel 130 mm C-axis travel -5° - 180° A-axis travel ∞ Electronic probe for tool detection and automatic positioning, with run out checking PC with 15” colour display unit Oil-tight casing with Lexan glass and sliding door for tool loading/unloading operations, with door lock Internal light 3-colour signaling lamp Weight 300 kg Dimensions 900x900x1560 mm Software: Interactive parametric tool programming SOFTWARE with 3D graphic interface Sharpening parameters can be easily edited based on tool geometry Supplied Accessories: Collet holder spindle and precision collets for 2 to 20 mm sharpening Programming software for: HSS and Carbide twist drill sharpening HSS and Carbide square end mills with 2-3-4 flutes (head only) sharpening Tap sharpening (chamfer only) Countersink sharpening Reamer sharpening (chamfer only) Engraving tools sharpening and production End mills shank grinding and O.D. grinding Diamond grinding wheel for Carbide drills sharpening Diamond grinding wheel for Carbide end mills sharpening Diamond grinding wheel for Carbide End mills shank grinding and O.D. grinding
