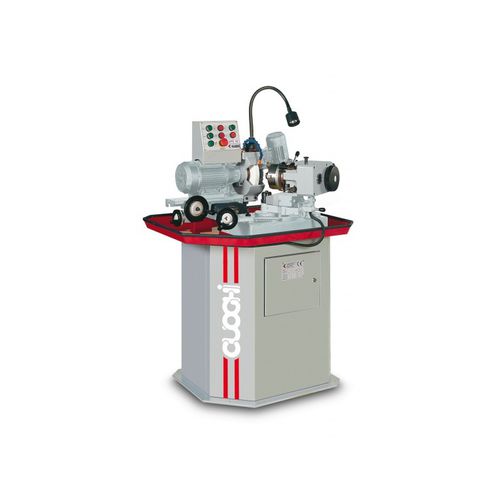

Tool grinding machine APE 40

precision

Sharpening capacity from mm. 2 to mm. 40 Drill angles between 40° and 180° Right and left cutting edges from 1 to 12 Accessories supplied include: Accessories supplied include precision 6-jwas chuck , device for web thinning, set of 4 cams, base, halogen lamp, grinding wheels, etc. An air-cooled and pneumatic suction cooling system can be supplied as an alternative to the water-cooling system supplied as standard. Technical Data: Diameter range mm. 2 - 40 Left or right cutting edges 1 - 12 Point angle 40° - 180° Revolution ratio between spindle and cam 1:1 - 1:2 Rake angle 0° - 18° Point grinding electric spindle power 0,76 KW self-braking Grinding wheel Ø 200 x 25 x 32 Point splitting electric spindle power 0,18 KW Grinding wheel for point thinning Ø 125 x 13 x 20 Turning drill motor power 0,021 KW Pump motor power 0,06 KW Overall dimensions mm 1040 x 750 x 1330 Weight KG 230
