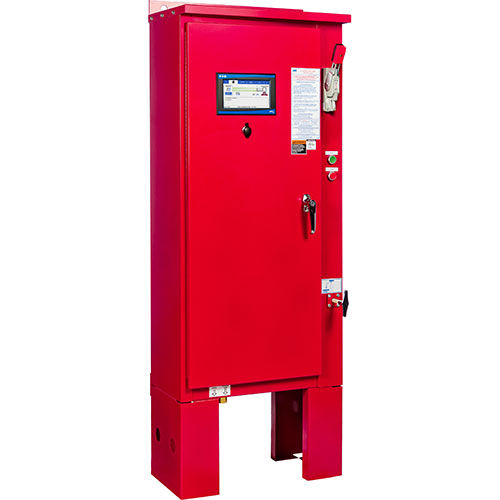

Firefighting pump controller FD30

The FD30 controller operates Across-The-Line where full voltage is applied to the motor for starting by the use of a single motor contactor. Starting inrush current is approximately 600% of rated full load amperes. The FD30 can be programmed for either fully automatic or semiautomatic operation. Features 7” Color Touchscreen 800x480, high resolution display Fast processor reduces input lag Simplified tab system makes navigation and programming easier USB Port Downloads history, statistics, configuration, diagnostics, and startup files History can log up to 65,000 events Upload configuration to reduce programming time Update firmware Optional Boards Relay board provides four (4) One Form-C programmable output relays MODBUS board provides output communication via RS422 or RS485 Secondary 4-20mA device board provides additional connections for external pressure transducers, temperature sensors, etc. Alarm board provides a supervisory powered alarm outputs
