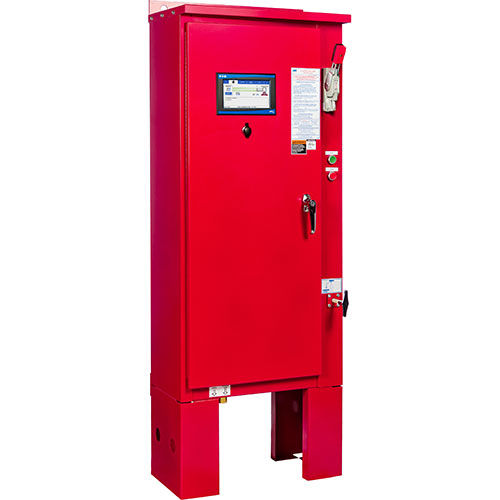

Firefighting pump controller FD80

The FD80, type EPCT Fire Controller uses a method of connecting the pump motor windings into wye configuration to start, then switching to a delta configuration to run. This reduces the starting current of the motor significantly. Wye-Delta starting is the only method that has a starting torque efficiency of 100%. The FD80 can be programmed for either fully automatic or semi-automatic operation. Features 7” Color Touchscreen 800x480, high resolution display Fast processor reduces input lag Simplified tab system makes navigation and programming easier USB Port Downloads history, statistics, configuration, diagnostics, and startup files History can log up to 65,000 events Upload configuration to reduce programming time Update firmware Optional Boards Relay board provides four (4) One Form-C programmable output relays MODBUS board provides output communication via RS422 or RS485 Secondary 4-20mA device board provides additional connections for external pressure transducers, temperature sensors, etc. Alarm board provides a supervisory powered alarm outputs
