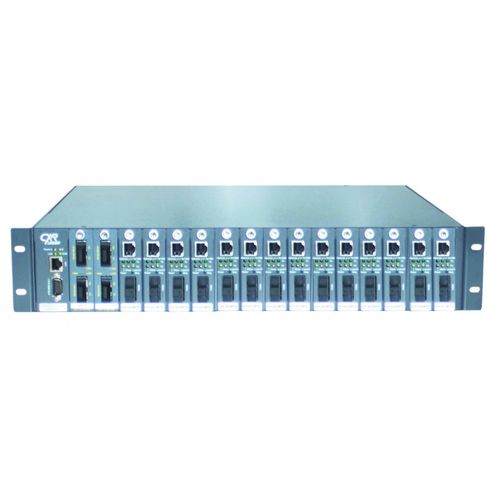

Media converter AMS-MEDIA 16

Ethernet

The CXR media conversion center is a powerful solution to deploy short and long distance optical Ethernet links. This system is used by the Telco to interconnect multi-site customers but also by enterprises for their large campus, building and multiple floor infrastructures. The AMS-MEDIA16-SNMP concentrates dual fiber, single fiber WDM and also CWDM Lambda Ethernet accesses into a unique management center. This 16 cards chassis is manageable in Telnet, html and SNMP protocols. All 16 local FOCIR cards and remote FOCI converters are controlled from a unique IP address. The management system gives access to the FOCIR cards for: Automatic inventory of the cards, Line and interface status display Link activation and deactivation, Link rate limiting per 1 Mbps step, Copper interface : Automatic or speed, duplex, , fow control settings, Broadcast filtering, Ethernet frame monitoring with 9 RMON groups , 1+1 protection of adjacent cards. Link Pass Through and Link alarm function, Alarm monitoring of cards, power modules and fans … and to the remote FOCIconverters: Automatic inventory of the converters, line and interface status display, copper interface: MDI/MDIX/Auto, speed, duplex and flow control settings, Ethernet traffic and power monitoringg. The AMS-MEDIA16-SNMP is a 19’’ 2U chassis for 16 hot swappable converter cards. It is powered by two redundant and load sharing 110/230 Vac or 48 Vdc power supplies. The chassis temperature is controlled by 3 fans.
