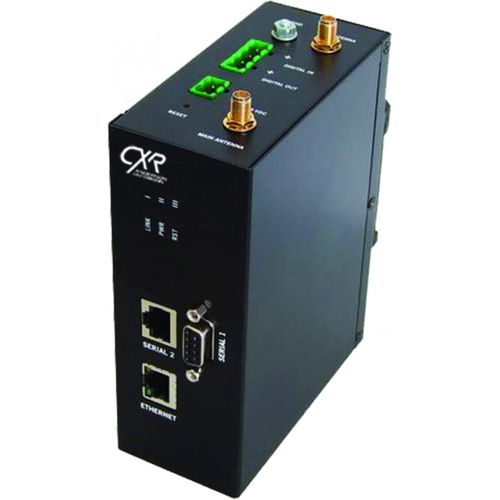

Wireless communication router RTD-I-TX2RS

EthernetRS232GPRS

RTD-I-TX2RS is an industry grade router for 2G/3G mobile network providing one Ethernet and two RS232 interfaces RTD-I-TX2RS is a 2G/3G Quad-Band mobile network router that delivers Ethernet and RS232 serial interfaces. It enables network interconnection and remote site connection through the mobile network with secured VPN, IP-Sec or Open-VPN protocols. RTD-I-TX2RS is an industrial grade product with extended temperature range. It perfoms metering and control processes at any point of an infrastructure with 2G/3G network coverage. It connects to Ethernet and RS232 serial equipment, as well as to digital input and output signals. Mobile network security and availability are increased thanks to a dual SIM card design. RTD-I-TX2RS comes in a robust metallic enclosure with DIN rail mounting and a 12 - 48 Vdc power input. Mobile network Quad Band 850 / 900 / 1800 / 2100 MHz GSM / GPRS / EDGE UMTS / HSDPA / HSUPA up to 7.2 Mbps 2x SIM card slots and 2x antenna with SMA sockets Communication interfaces 1x 10/100BaseT Ethernet port 2x RS232 serial ports 1x digital input and 1x relay output Protocols RIP, NAT/PAT, DHCP, DYN-DNS, VPN, IP-Sec, Open-VPN SNMP, http, CLI, ssh, NTP Environment DIN rail metallic box: 50 x 135 x 104 mm Operating temperature : -25 to +70 °C Power supply input range : 12 to 48 Vdc
