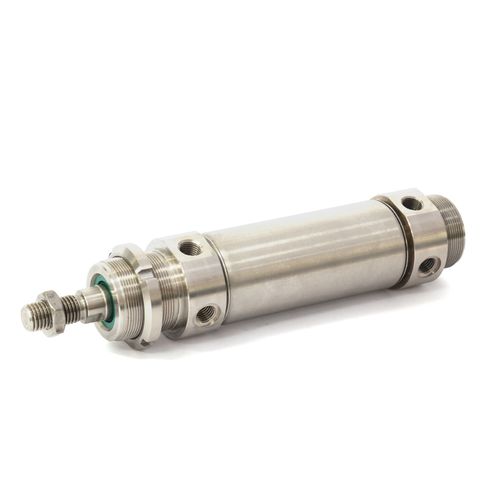

Round cylinder CP95pneumaticpistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- piston
- Configuration
- double-acting
- Material
- stainless steel
- Applications
- for harsh environments, chemistry, food, industrial
- Other characteristics
- round, corrosion-resistant, ATEX
- Stroke
Min.: 10 mm
(0.394 in)Max.: 300 mm
(11.811 in)- Force
Min.: 482 N
Max.: 1,869 N
Description
Covers: AISI304 stainless steel
Tube: AISI304 stainless steel
Piston: Aluminium
Seals: Polyurethane
Guide bush: sintered bronze
Pist rod: Stainless Steel AISI316
Max pressure: 10 bar
Operating temperature: -35 ° C + 80 ° C with dry air
Fluid: Filtered and lubricated and non-lubricated compressed air
The tubes and covers of CP95 stainless steel cylinders are constructed from AISI304 stainless steel while the piston rod is AISI316 stainless steel. The piston is made from aluminium, the bush from sintered bronze and the seals from polyurethane.
